QPC7332TR7

Overview

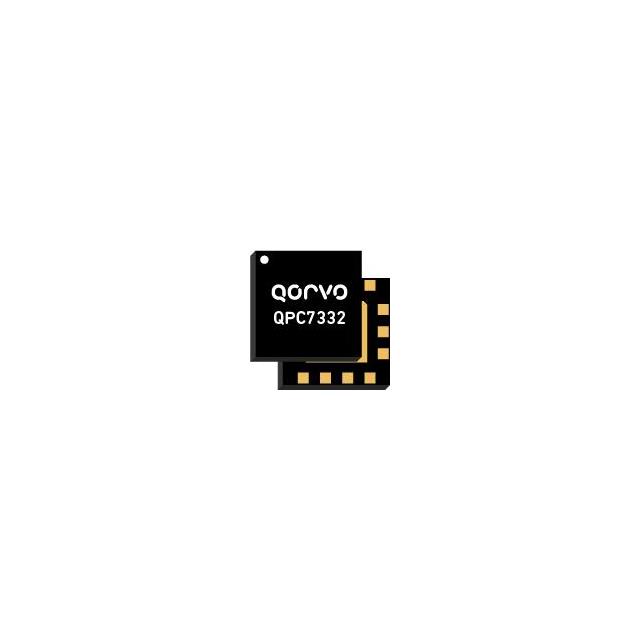

The QPC7332TR7 is a voltage-controlled tilt equalizer designed for CATV applications, operating within a frequency range of 45 MHz to 1.218 GHz. It utilizes a 5 V supply and draws 2.7 mA of current. The component is housed in a 14-QFN (6x6) package and supports SMD/SMT installation. It functions as a single driver and receiver variable equalizer with humidity sensitivity. The device operates between -30°C and +100°C.

Feature Summary

• Voltage-controlled tilt equalization for signal compensation
• Integrated single driver and receiver configuration
• Designed for CATV amplifier modules

Applications

• CATV system signal conditioning
• RF equalization in cable networks
• Amplifier module integration

Procurement Notes

Verify the specific suffix TR7 against official Qorvo documentation to confirm reel packaging specifications. Ensure compatibility with the QPC7332 series development kit if evaluation is required. Confirm RoHS compliance status through the manufacturer's latest environmental reports before procurement.

Selection Notes

Select this component when variable tilt control is required for frequencies up to 1.218 GHz. The 5 V supply requirement and low current consumption suit battery or low-power systems. Verify that the 14-QFN package dimensions align with the target PCB layout constraints.

Part Context

This part belongs to the QPC7332 series of variable equalizers from Qorvo. It is distinct from other series like QPC7333 or QPA3333 amplifiers. The component serves specifically as an equalizer rather than a switch or attenuator within the RF integrated circuit portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
