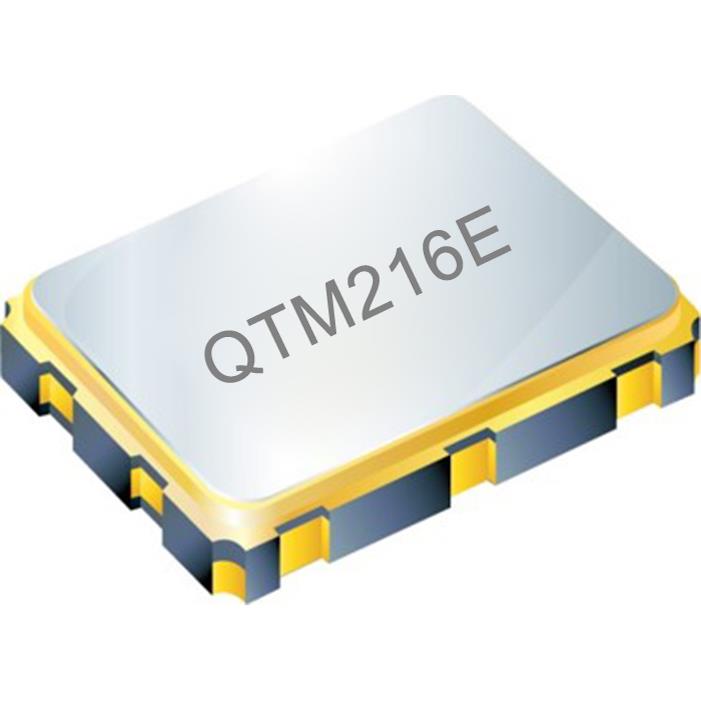

QTM216-50.000MBD-T

$1.16

Description：2.0x1.6x.75 XO 3.3V 25ppm
Series：QTM216
Mfr：QST
Package：Tape & Reel (TR)

SKU:9bad745fbcd7 Category: Oscillators Brand: QST

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：2.0x1.6x.75 XO 3.3V 25ppm
Series：QTM216
Mfr：QST
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：50 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：±25ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：5mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)：0.033" (0.83mm)
Supplier Device Package：-

Download product information

QTM216-50.000MBD-T

Overview

The QTM216-50.000MBD-T is a surface-mount crystal oscillator manufactured by QST, operating at a nominal frequency of 50 MHz. It utilizes CMOS output with low electromagnetic interference characteristics and supports a supply voltage range including 3.3V. The device features an enable/disable control function and is housed in a compact 4-SMD, no-lead package measuring 2.0mm by 1.6mm. It offers a frequency stability of ±25 ppm and operates within a temperature range of -40°C to +85°C.

Feature Summary

Low EMI CMOS output for signal integrity
Compact 2.0x1.6mm SMD footprint
Enable/Disable control functionality

Applications

Consumer electronics
HD Camera systems
Digital Video Recorders (DVR)

Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to ensure correct voltage, stability, and package variations. Confirm that the ordering part number matches the required operational parameters for the target application before finalizing procurement.

Selection Notes

Select this component when a small form factor oscillator with low electromagnetic interference is required. Ensure the system design accommodates the 3.3V supply requirement and the specified industrial temperature range for reliable operation.

Part Context

This model belongs to the QTM216 series of quartz crystal oscillators from QST. The series is designed for applications requiring precise timing signals in space-constrained environments, utilizing ceramic packages for durability.
