R5F1006AASM#10

Microcontrollers Overview

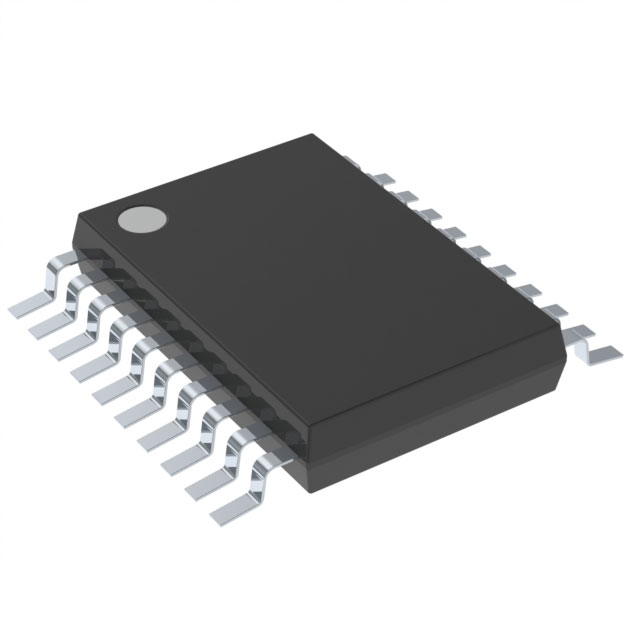

The R5F1006AASM#10 is a 16-bit microcontroller from the Renesas RL78/G13 series. It features a 32 MHz internal oscillator and 16 KB of Flash program memory with 2 KB of SRAM data storage. The device operates within a voltage range of 1.6 V to 5.5 V and supports an operating temperature range of -40°C to +85°C. It includes six 8/10-bit ADC channels, eight 16-bit timers/counters, and interfaces such as I2C and UART. The component is housed in a 20-TSSOP surface-mount package.

Microcontrollers Feature Summary

• Integrated 16-bit RL78 core with high code efficiency
• Built-in low-voltage detection and power-on reset circuits
• Supports multiple communication protocols including CSI, I2C, LINbus, and UART

Microcontrollers Applications

• General-purpose control systems
• Consumer electronics appliances
• Industrial instrumentation

Microcontrollers Procurement Notes

Verify the specific suffix #10 against official Renesas documentation to confirm pinout and electrical characteristics. Confirm availability status as distribution listings may vary. Ensure compliance with RoHS3 requirements for environmental standards before integration into final products.

Microcontrollers Selection Notes

Select this model for applications requiring a balance of processing speed and peripheral count in a compact 20-pin form factor. Compare memory sizes against other RL78/G13 variants if larger storage is needed. Verify that the 1.6V minimum supply voltage aligns with the system power design constraints.

Microcontrollers Part Context

This part belongs to the RL78/G13 family, designed for general-purpose 16-bit embedded control. It shares architectural similarities with other members like the R5F1006EDSP but differs in package type and specific memory configurations. The family emphasizes low power consumption and robust peripheral sets for cost-sensitive applications.

Microcontrollers Replacement Considerations

Check for direct substitutes within the RL78/G13 series such as the R5F1006AASM#50 or R5F1006AASM#9F, ensuring identical pinouts and memory specifications. Verify compatibility with existing firmware and hardware layouts before switching between suffix variations.
