R5F11AGGDNB#40

Microcontrollers Overview

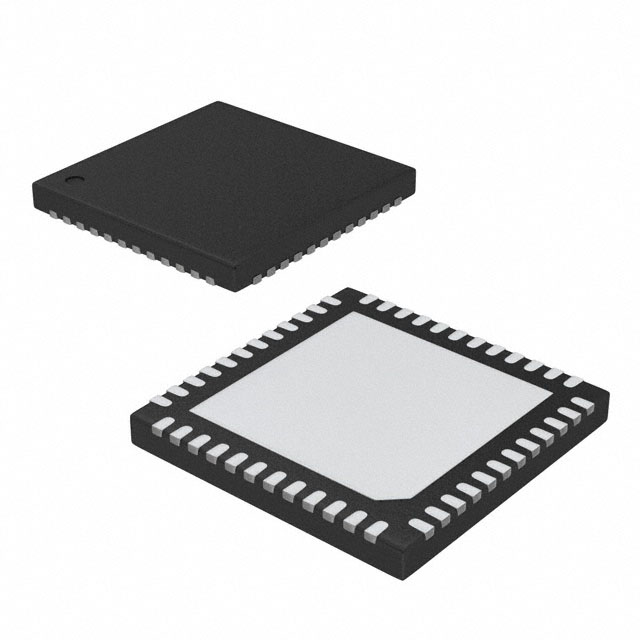

The R5F11AGGDNB#40 is a 16-bit microcontroller from the Renesas RL78/G1D series. It features an RL78 core with up to 32 MHz operation, 128 KB of Flash program memory, and 8 KB of data RAM. The device includes a 10-bit ADC with 13 channels, multiple communication interfaces including CSI, I2C, and UART, and 41 general-purpose I/Os. It operates within a voltage range of 1.6 V to 5.5 V and supports temperatures from -40°C to +85°C in a 48-pin QFN package.

Microcontrollers Feature Summary

• Integrates high-speed 16-bit RL78 CPU core for efficient processing
• Provides extensive analog input capabilities via multi-channel ADC
• Supports versatile serial communication protocols for system connectivity

Microcontrollers Applications

• Industrial control systems requiring robust MCU performance
• Consumer appliances with complex interface requirements
• Automotive body electronics operating in wide temperature ranges

Microcontrollers Procurement Notes

Verify the specific suffix #40 indicates reel packaging when ordering. Confirm export documentation requirements as this product may require additional files for shipment from the United States. Ensure compatibility with existing PCB footprints for the 48-QFN package before finalizing procurement plans.

Microcontrollers Selection Notes

Select this component for designs needing substantial program memory and numerous I/O lines in a compact form factor. Compare against other RL78/G1D variants if different pin counts or memory sizes are required. Verify that the 1.6V minimum supply voltage aligns with the target system power architecture.

Microcontrollers Part Context

This part belongs to the RL78/G1D family, designed for general-purpose applications. It shares architectural similarities with other RL78 devices but offers specific memory and I/O configurations tailored for mid-range control tasks. The G1D series emphasizes low power consumption alongside high integration levels.

Microcontrollers Replacement Considerations

Check for direct substitutes within the RL78/G1D family such as R5F11AGGANB#40 if pinout compatibility allows. Verify electrical specifications and package dimensions before swapping parts to ensure mechanical fit.
