R7F100GLN2DLA#HC0

Microcontrollers Overview

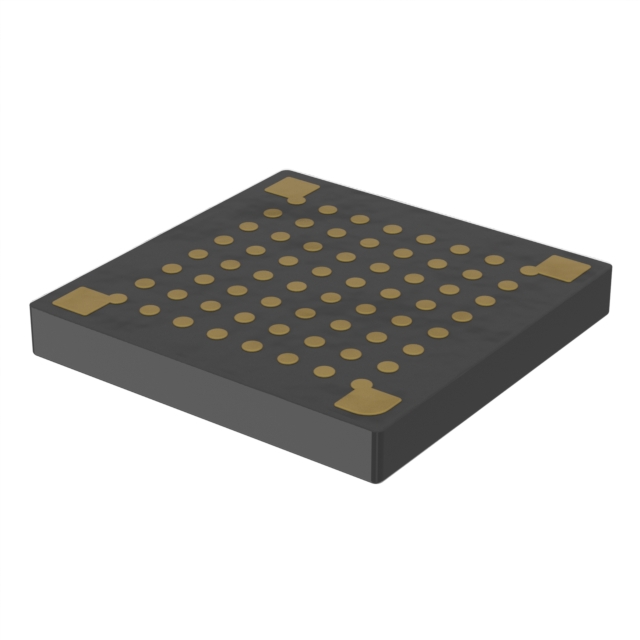

The R7F100GLN2DLA#HC0 is a 16-bit microcontroller belonging to the RL78/G23 series, manufactured by Renesas Electronics. It features an integrated 512 KB flash memory and 48 KB of RAM within a 64-pin WFLGA package measuring 5x5 mm. The device operates at a maximum clock frequency of 32 MHz and supports a supply voltage range from 1.6 V to 5.5 V. It includes multiple communication interfaces such as I2C, SPI, and UART, alongside various analog peripherals including ADCs and DACs. The component is rated for industrial operating temperatures ranging from -40°C to +105°C.

Microcontrollers Feature Summary

• Integrates high-capacity non-volatile memory with substantial data storage for complex application logic.
• Supports versatile serial communication protocols for system connectivity.
• Features built-in analog-to-digital conversion capabilities for sensor interfacing.

Microcontrollers Applications

• Industrial control systems requiring robust processing and wide temperature tolerance
• Consumer appliances utilizing low-power microcontroller architectures
• Automotive electronic modules operating in harsh thermal environments

Microcontrollers Procurement Notes

Verify the specific suffix HC0 against official Renesas documentation to confirm package type and temperature grade. Ensure compatibility with existing PCB footprints for the 64-WFLGA configuration. Cross-reference the exact part number with current datasheets to validate manufacturing status and availability constraints before finalizing procurement plans.

Microcontrollers Selection Notes

Select this component when a 16-bit architecture with extensive memory is required for cost-sensitive applications. Consider the RL78/G23 series benefits for power efficiency compared to higher-performance cores. Evaluate the pin count and peripheral set against interface requirements to ensure optimal resource utilization without over-specifying the controller.

Microcontrollers Part Context

This microcontroller is part of the RL78 family, known for energy efficiency and integrated peripherals. The G23 subgroup targets general-purpose applications needing reliable performance across diverse industries. It complements other Renesas MCUs by offering a balance of processing power and peripheral richness suitable for embedded control tasks.

Microcontrollers Replacement Considerations

Consult official substitution guides for compatible RL78/G23 variants with matching memory sizes and packages. Verify electrical characteristics and pinout compatibility before transitioning to alternative part numbers to maintain system integrity.
