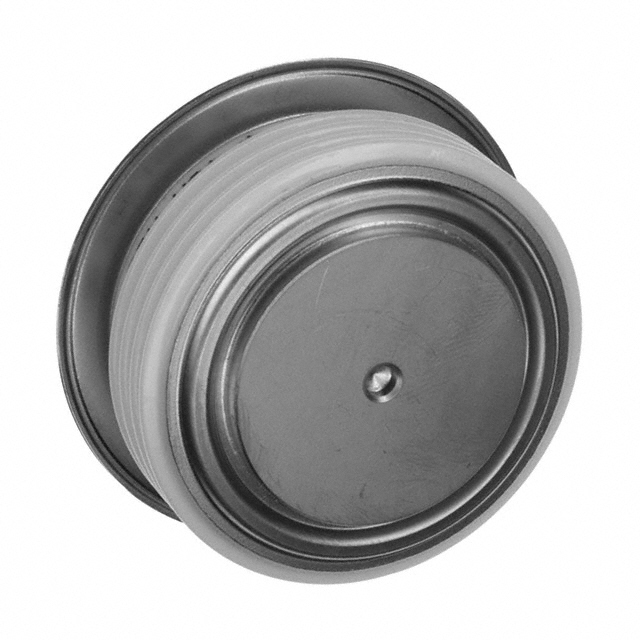

R9G01222XX is listed in the Single Diodes range at ChipApex. The manufacturer field lists Powerex Inc.. Its product description is DIODE STD 1200V 2200A DO200AB. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for R9G01222XX
- Description：DIODE STD 1200V 2200A DO200AB
- Series：-
- Mfr：Powerex Inc.
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1200 V
- Current - Average Rectified (Io)：2200A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 1500 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：15 µs
- Current - Reverse Leakage @ Vr：150 mA @ 1200 V
- Capacitance @ Vr, F：-
- Mounting Type：Clamp On
- Package / Case：DO-200AB, B-PUK
- Supplier Device Package：DO-200AB, B-PUK
- Operating Temperature - Junction：-
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for R9G01222XX
Single Diodes Overview
The Powerex R9G01222XX is a general-purpose single diode rectifier module designed for high blocking voltage capability with low forward voltage to minimize conduction losses. It features a repetitive reverse voltage maximum of 1200V and a continuous forward current rating of 2200A. The component utilizes a DO-200AB hermetic package, ensuring durability and reliability in demanding power conversion applications.
Single Diodes Feature Summary
- High blocking voltage capability
- Low forward voltage drop for efficiency
- Hermetic sealing for environmental protection
Single Diodes Applications
- Industrial power supplies
- Motor drive systems
- Inverter circuits
Single Diodes Procurement Notes
Verify the specific suffix configuration against official Powerex documentation to ensure compatibility with your system requirements. Confirm that the DO-200AB package dimensions match your thermal management design. Cross-reference the 1200V/2200A ratings with your circuit's peak operating conditions to prevent overstress.
Single Diodes Selection Notes
Select this module when high current handling at 2200A is required alongside robust 1200V reverse blocking. The hermetic construction makes it suitable for harsh environments where standard packaging might fail. Ensure adequate heatsinking is provided due to the high current capacity and associated thermal dissipation needs.
Single Diodes Part Context
This component belongs to the Powerex R9G0 series of general-purpose rectifiers. These discrete modules are engineered for high-efficiency power conversion, balancing high voltage withstand with minimal conduction loss. The series is widely used in heavy-duty industrial electronics requiring reliable DC-to-AC or AC-to-DC conversion.
Single Diodes Replacement Considerations
Consult official cross-reference guides for equivalent modules from other manufacturers offering similar 1200V/2200A specifications in a DO-200AB package. Verify pinout compatibility and thermal resistance values before substitution.
