Product Detailed Parameters
- Description：DIODE ARR SCHOTT 100V 30A TO263S
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io) (per Diode)：30A
- Voltage - Forward (Vf) (Max) @ If：770 mV @ 15 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 100 V
- Operating Temperature - Junction：150°C
- Mounting Type：Surface Mount
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263S
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview

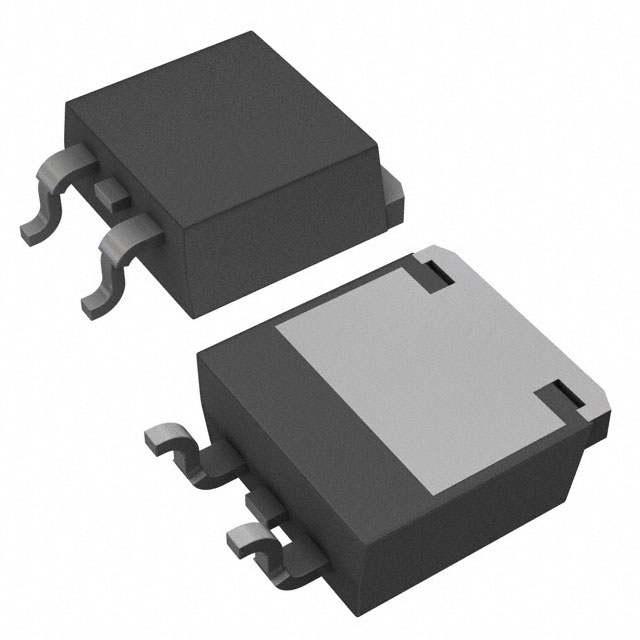

The RBQ30NS100ATL is a silicon Schottky barrier diode manufactured by ROHM Semiconductor, designed for general rectification and automotive applications. It features a dual anode common cathode configuration housed in a TO-263S (D2PAK) surface-mount package. The device supports a repetitive reverse voltage of 100 V and an average forward current of 30 A. Key electrical parameters include a maximum forward voltage of 770 mV at 15 A, a peak forward surge current of 100 A, and a low reverse current of 200 uA at 100 V. It operates within a junction temperature range up to +150 °C and holds AEC-Q101 qualification.
Feature Summary
- Automotive-grade reliability certified under the AEC-Q101 standard
- Low reverse leakage current characteristics for improved efficiency
- Dual anode common cathode topology for versatile circuit integration
Applications
- Automotive power supply circuits
- General purpose rectification in electronic systems
- Switching power supply freewheeling diodes
Procurement Notes
Verify the specific suffix 'TL' against the manufacturer's official documentation to confirm tape-and-reel packaging specifications. Ensure the component meets AEC-Q101 requirements if used in automotive contexts. Cross-reference the datasheet for thermal management guidelines given the TO-263S package constraints. Confirm RoHS compliance status with the latest product release notes before finalizing procurement orders.
Selection Notes
Select this component when a 100 V rated Schottky diode with 30 A continuous current capability is required in a surface-mount format. The dual anode common cathode structure allows for use in bridge configurations or synchronous rectification setups. Consider the 770 mV forward voltage drop for thermal design purposes. Verify that the TO-263S footprint matches the target PCB layout constraints.
Part Context
This part belongs to ROHM's RBQ series of automotive-grade Schottky barrier diodes. It shares the same electrical ratings as the RBQ30NS100AFHTL but differs in packaging type. The series is engineered for high reliability in harsh environments, distinguishing it from standard industrial diodes through rigorous automotive qualification standards.
Replacement Considerations
The RBQ30NS100AFHTL serves as a direct functional substitute with identical electrical specifications, differing only in the trailing packaging suffix which indicates reel versus cut-tape availability.
