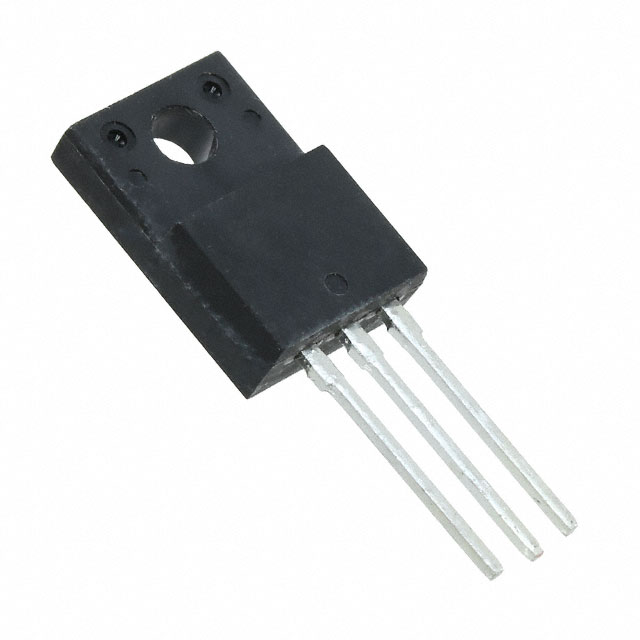

RBR30T60ANZC9

$2.06

Description：DIODE ARR SCHOTT 60V 15A TO220FN
Series：-

SKU:432142bd7952 Category: Diode Arrays Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARR SCHOTT 60V 15A TO220FN
Series：-
Mfr：Rohm Semiconductor
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：60 V
Current - Average Rectified (Io) (per Diode)：15A
Voltage - Forward (Vf) (Max) @ If：670 mV @ 15 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：600 µA @ 60 V
Operating Temperature - Junction：150°C
Mounting Type：Through Hole
Package / Case：TO-220-3 Full Pack
Supplier Device Package：TO-220FN
Grade：-
Qualification：-

Download product information

RBR30T60ANZC9

Overview

The RBR30T60ANZC9 is a Schottky barrier diode manufactured by ROHM Semiconductor, housed in an ITO-220AB package. It features a dual anode common cathode configuration with silicon technology. The device supports a repetitive reverse voltage of 60 V and an average forward current of 30 A. Forward voltage is specified at 550 mV to 670 mV depending on source data, with a maximum reverse current of 600 uA. It withstands a forward surge current of 100 A and operates up to +150 C.

Feature Summary

Dual anode common cathode configuration for flexible circuit integration
Low forward voltage characteristics for improved efficiency
High reliability design suitable for demanding environments

Applications

Power supply rectification circuits
DC-DC converter freewheeling applications
General purpose switching power supplies

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before procurement. Confirm that the component meets all required electrical specifications for the target application. Check for any obsolescence notices or design diversion restrictions associated with this part number. Ensure compatibility with the intended mounting style and thermal management requirements.

Selection Notes

Select this component based on its 60 V reverse voltage rating and 30 A forward current capacity. Consider the low forward voltage drop for efficiency optimization. Evaluate the thermal performance within the ITO-220AB package constraints. Compare against alternative Schottky diodes if higher voltage ratings or different configurations are needed.

Part Context

This part belongs to ROHM's Schottky diode series designed for power management applications. It utilizes silicon technology to provide robust performance in high-current scenarios. The dual anode common cathode structure allows for efficient use in bridge rectifier or synchronous rectifier topologies.
