RCBT-63+

Overview

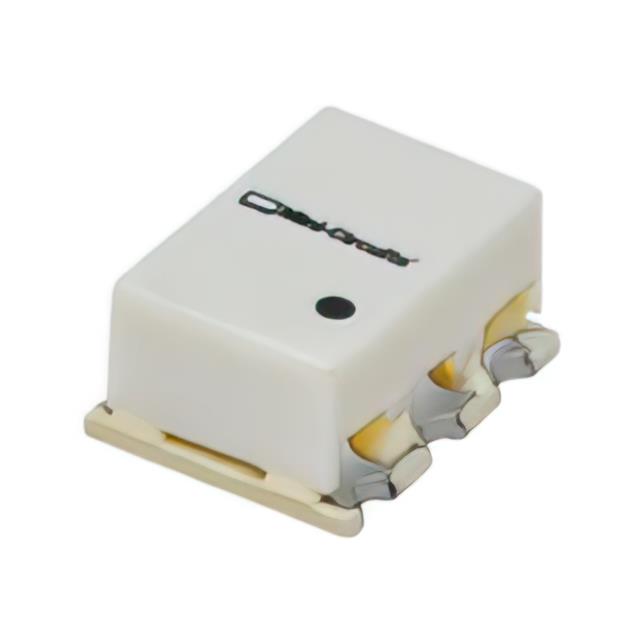

The RCBT-63+ is a surface mount bias tee from Mini-Circuits designed for general-purpose RF applications. It operates within a frequency range of 10 MHz to 6 GHz. The component supports a maximum DC voltage of 25 V and a maximum current of 0.5 A, with a power handling capacity of 1 W. Insertion loss varies between 0.6 dB and 2 dB across the operating band. Packaged in a TT1224-2 case style, it is RoHS compliant and suitable for high DC voltage and current handling requirements.

Feature Summary

• Surface mount construction for automated assembly
• High DC voltage and current handling capability
• Low insertion loss performance
• General-purpose RF biasing functionality

Applications

• RF circuit biasing
• Wireless communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific suffix designation against official Mini-Circuits documentation to confirm exact specifications. Ensure compatibility with required PCB layout guidelines provided in the manufacturer's design files. Confirm that the selected variant meets all environmental and regulatory standards for the intended deployment environment.

Selection Notes

Select this component when a surface mount bias tee is required for frequencies up to 6 GHz. Consider the 25 V and 0.5 A limits for DC supply requirements. Evaluate insertion loss characteristics against system sensitivity needs. Verify package dimensions against available PCB real estate constraints.

Part Context

This part belongs to Mini-Circuits' line of RF IC bias tees. These components are engineered to inject DC power onto RF transmission lines while maintaining signal integrity. The series includes variants optimized for different frequency ranges and power levels, serving as critical interfaces in active RF module designs.

Replacement Considerations

RCBT-63H+
