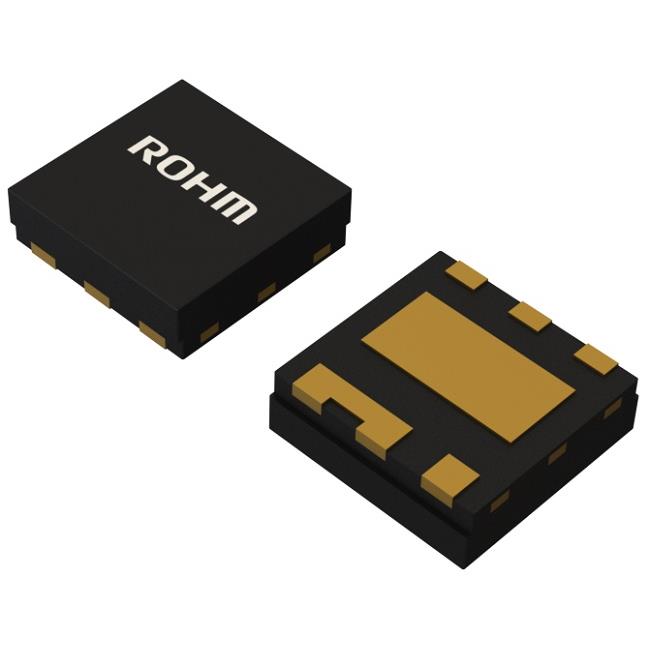

RF9G120BJFRATCR is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is PCH -40V -12A, DFN2020Y7LSAA, PO. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for RF9G120BJFRATCR
- Description：PCH -40V -12A, DFN2020Y7LSAA, PO
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：P-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：40 V
- Current - Continuous Drain (Id) @ 25°C：12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：48mOhm @ 3A, 10V
- Vgs(th) (Max) @ Id：2.5V @ 279µA
- Gate Charge (Qg) (Max) @ Vgs：15.5 nC @ 10 V
- Vgs (Max)：+5V, -20V
- Input Capacitance (Ciss) (Max) @ Vds：750 pF @ 20 V
- FET Feature：-
- Power Dissipation (Max)：23W (Tc)
- Operating Temperature：150°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount
- Supplier Device Package：DFN2020Y7LSAA
- Package / Case：6-UDFN Exposed Pad
Single FETs, MOSFETs datasheet and documents for RF9G120BJFRATCR
Single FETs, MOSFETs Overview
RF9G120BJFRA is a P-channel power MOSFET rated at -40V drain-source voltage and ±12A continuous drain current. It features a maximum on-state resistance of 48mΩ at VGS=-10V and supports up to 23W power dissipation. The device operates within a junction temperature range of -55°C to +150°C and utilizes a DFN2020Y7LSAA surface-mount package.
Single FETs, MOSFETs Feature Summary
- AEC-Q101 qualified for automotive reliability
- Low on-resistance design for high efficiency
- High-power density in a compact mold package
Single FETs, MOSFETs Applications
- Advanced Driver Assistance Systems (ADAS)
- Automotive information systems
- Vehicle lighting circuits
- Body electronics modules
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm packaging details, such as tape width and reel size. Ensure that the component meets all required environmental standards and lead-free plating specifications before finalizing procurement orders.
Single FETs, MOSFETs Selection Notes
Select this component based on its negative voltage rating and low on-resistance characteristics suitable for automotive environments. Evaluate thermal management requirements against the specified junction-to-case thermal resistance and ensure compatibility with the intended gate drive voltage levels.
Single FETs, MOSFETs Part Context
This part belongs to ROHM's automotive-grade discrete transistor portfolio. It is designed specifically for robust performance in demanding vehicle applications, offering a balance of electrical efficiency and physical durability within a standardized surface-mount footprint.
Single FETs, MOSFETs Replacement Considerations
Consult the official datasheet or contact the manufacturer directly for verified substitute part numbers. Do not assume cross-compatibility with other models without explicit confirmation from the source documentation.
