RFMTA280715IMAB301 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Walsin Technology Corporation. Its product description is RF ANT 2.4GHZ STAMPED MET IPEX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for RFMTA280715IMAB301
- Description：RF ANT 2.4GHZ STAMPED MET IPEX
- Series：-
- Mfr：Walsin Technology Corporation
- Package：Bulk
- RF Family/Standard：General ISM
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Stamped Metal
- Number of Bands：1
- VSWR：2
- Return Loss：-10dB
- Gain：2.8dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.142" (3.60mm)
- Applications：ISM
- Power - Max：-
Antennas RF datasheet and documents for RFMTA280715IMAB301
Antennas RF Overview

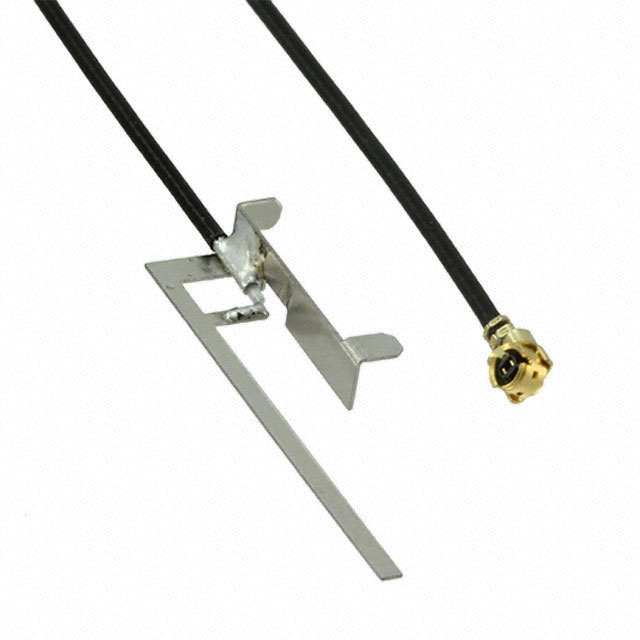

The RFMTA280715IMAB301 is a stamped metal antenna manufactured by Walsin Technology Corporation, designed for operation at 2.4 GHz. It utilizes an I-PEX connector interface and employs adhesive for mounting on printed circuit boards. The component is classified under RF antennas and supports wireless communication protocols requiring this frequency band.
Antennas RF Feature Summary
- Stamped metal construction ensures structural integrity and consistent radiation performance.
- Integrated adhesive backing facilitates direct attachment to device enclosures or substrates.
- I-PEX connector interface provides reliable high-frequency signal transmission.
Antennas RF Applications
- Wireless local area network (WLAN) devices
- Bluetooth-enabled consumer electronics
- IoT sensor modules
Antennas RF Procurement Notes
Verify the specific connector mating compatibility with the target PCB footprint before integration. Confirm that the adhesive type meets the thermal and mechanical requirements of the final assembly environment. Ensure the selected variant matches the required frequency specifications for the intended wireless standard.
Antennas RF Selection Notes
Select this component when a low-profile, cost-effective solution for 2.4 GHz applications is required. The stamped metal design offers a balance between performance and manufacturing efficiency compared to more complex antenna structures. Consider the available mounting space and the need for adhesive-based installation in the product design phase.
Antennas RF Part Context
This part belongs to Walsin's portfolio of passive RF components, which includes various antennas, filters, and baluns. The company specializes in providing solutions for mobile communications and networking equipment, focusing on miniaturization and integration trends in modern electronic devices.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Alternative selection requires matching electrical parameters such as operating frequency, impedance, and connector type.
