Product Detailed Parameters
- Description：DIODE ARRAY GP 800V 10A LPDS
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：800 V
- Current - Average Rectified (Io) (per Diode)：10A
- Voltage - Forward (Vf) (Max) @ If：2.1 V @ 5 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：40 ns
- Current - Reverse Leakage @ Vr：10 µA @ 800 V
- Operating Temperature - Junction：150°C
- Mounting Type：Surface Mount

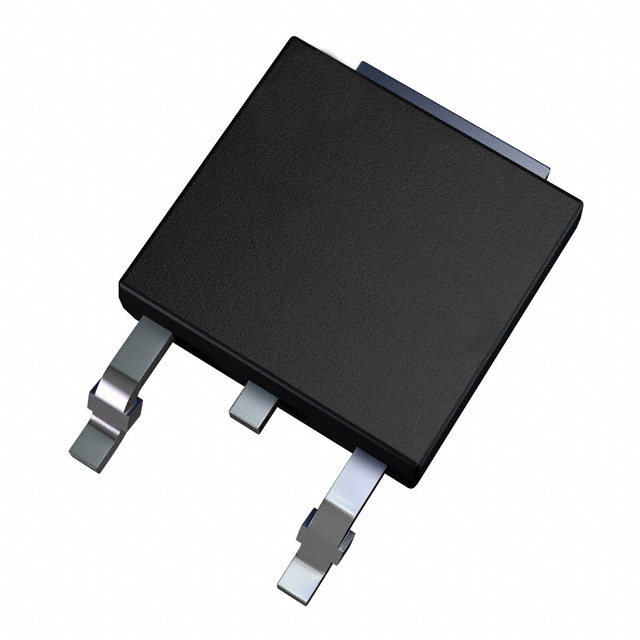

- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：LPDS
- Grade：-
- Qualification：-
Download product information
Overview
The RFN10NS8DTL is a fast recovery diode designed for general rectification applications, featuring low forward voltage and low reverse recovery loss. It utilizes a cathode common dual configuration within a TO-263S (D2PAK) surface-mount package. Key electrical specifications include an 800V reverse voltage rating, a 10A average rectified forward current, and a maximum forward voltage of 2.1V at 5A. The device exhibits a maximum reverse recovery time of 40ns at 500mA, with a peak repetitive reverse voltage of 800V and a maximum reverse current of 0.01mA.
Feature Summary
- Cathode common dual configuration for efficient circuit design
- Low switching loss characteristics suitable for high-frequency operation
- Low forward voltage to minimize conduction losses
Applications
- General purpose rectification circuits
- Switching power supplies
- Industrial power conversion systems
Procurement Notes
Verify the specific ordering suffix TL against official Rohm documentation to confirm tape-and-reel packaging and quantity specifications. Ensure the component meets RoHS compliance requirements for your target market. Confirm that the application does not involve automotive equipment, as this standard-grade product is explicitly not recommended for such use cases.
Selection Notes
Select this component when a dual-diode solution with high voltage blocking capability is required in a compact surface-mount form factor. The 800V rating provides robustness against voltage transients, while the 10A current capacity supports moderate power levels. Consider the thermal performance within the D2PAK package for heat dissipation requirements in the final assembly.
Part Context
This part belongs to Rohm's line of fast recovery diodes, engineered for efficiency in power electronics. The RFN series emphasizes reduced switching losses compared to standard recovery diodes. The RFN10NS8DTL specifically addresses needs for high-voltage, medium-current rectification where space constraints favor surface-mount technologies over through-hole alternatives.
Replacement Considerations
The RFN10NS8DFH is documented as a similar level replacement with the same package and specifications. Verify pinout compatibility and exact parameter matching before substitution.
