RFPCA201018IM5B301

Antennas RF Overview

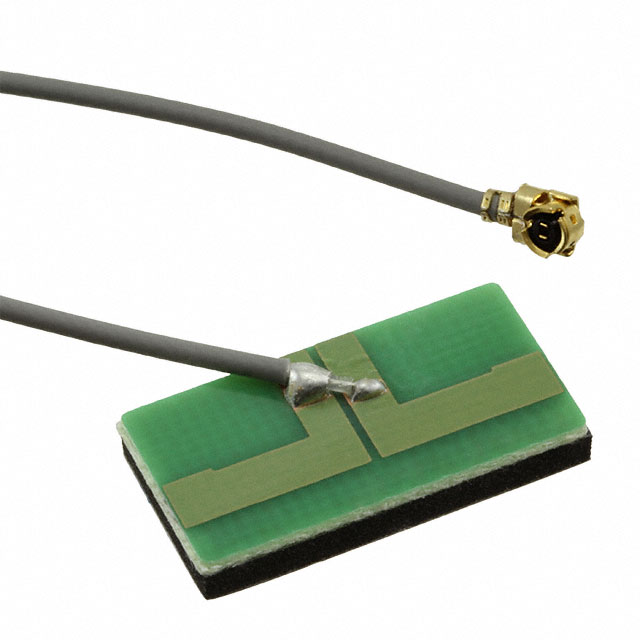

The RFPCA201018IM5B301 is an RF antenna component manufactured by Walsin Technology Corporation, designed for operation at a frequency of 5.5GHz. It features a PCB trace structure integrated with U.FL (UMCC) and I-PEX MHF1 adhesive connectors. This component serves as a dedicated radio frequency solution for wireless communication systems requiring precise signal transmission at the specified microwave frequency band.

Antennas RF Feature Summary

• Integrated PCB trace antenna design optimized for 5.5GHz RF signal transmission
• Includes U.FL (UMCC) and I-PEX MHF1 connector interfaces for direct cable attachment
• Adhesive mounting mechanism facilitates secure integration onto printed circuit boards

Antennas RF Applications

• Wireless communication modules operating in the 5.5GHz frequency range
• RFID reader and writer devices requiring compact antenna solutions
• Short-range wireless data transfer equipment

Antennas RF Procurement Notes

Verify that the procurement channel provides original manufacturer documentation to confirm authenticity. Ensure the received components match the specific model designation RFPCA201018IM5B301. Check for physical integrity of the U.FL connectors and adhesive backing prior to installation. Confirm compliance with relevant environmental standards if required by the end product specifications.

Antennas RF Selection Notes

Select this component when a pre-integrated 5.5GHz antenna with U.FL connectivity is required. It eliminates the need for separate antenna layout and connector soldering. Consider the physical footprint and adhesive requirements during PCB mechanical design. Ensure the application environment supports the operational frequency without significant interference or shielding issues.

Antennas RF Part Context

Walsin Technology Corporation specializes in passive electronic components, including MLCCs, resistors, and RF solutions. The RFPCA201018IM5B301 belongs to their RF antenna portfolio, targeting applications needing reliable wireless connectivity. The company focuses on providing compact, high-performance components for mobile communications and networking industries.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing RF circuits before considering alternative antennas from other manufacturers.
