RJP4009ANS-01#Q6

Description：IGBT 400V
Series：-

SKU:be3a9dcc1132 Category: Single IGBTs Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 400V
Series：-
Mfr：Renesas Electronics Corporation
Package：Tube
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：400 V
Current - Collector (Ic) (Max)：-
Current - Collector Pulsed (Icm)：150 A
Vce(on) (Max) @ Vge, Ic：9V @ 2.5V, 150A
Power - Max：1.8 W
Switching Energy：-
Input Type：Standard
Gate Charge：-
Td (on/off) @ 25°C：-
Test Condition：-
Reverse Recovery Time (trr)：-
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-VDFN
Supplier Device Package：8-VSON (3x4.4)
Grade：-
Qualification：-

Download product information

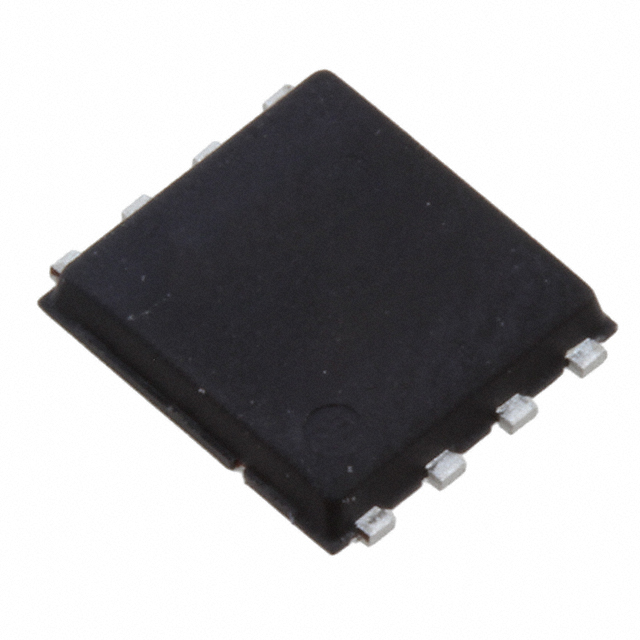

RJP4009ANS-01#Q6

Overview

The RJP4009ANS-01#Q6 is an N-channel Insulated Gate Bipolar Transistor (IGBT) manufactured by Renesas Electronics. Designed for high-current switching, it features a collector-emitter voltage rating of 400 V and a continuous collector current capacity of 150 A at a case temperature of 70°C with a 400 μF capacitor load. The device utilizes a small surface-mount VSON-8 package and operates with a drive voltage range of 2.5 V to 6 V maximum. It is constructed to be lead-free and halogen-free, adhering to environmental standards.

Feature Summary

High current handling capability suitable for demanding flash applications
Compact surface-mount packaging for space-constrained designs
Compatible with low-voltage logic-level gate drive signals

Applications

Strobe flash drivers for digital cameras
High-power pulse generation circuits
Consumer electronics requiring compact high-voltage switching

Procurement Notes

Verify the specific suffix #Q6 against official Renesas documentation to confirm tape-and-reel packaging or specific quality grade variations. Ensure the component meets RoHS and halogen-free requirements as stated in the base datasheet. Cross-reference the manufacturer part number with authorized distributors to confirm availability status and authenticity before procurement.

Selection Notes

Select this component when designing camera strobe circuits that require a 400 V blocking voltage and high peak current delivery. The VSON-8 package is appropriate for applications where board space is limited. Ensure the gate driver circuit provides a voltage within the 2.5 V to 6 V range to guarantee proper switching performance without exceeding maximum ratings.

Part Context

This part belongs to the RJP4009 series of N-channel IGBTs specifically engineered for strobe flash applications. It shares functional similarities with parts like the RJP4003ANS but offers distinct current and voltage characteristics tailored for high-intensity light emission control in portable imaging devices.

Replacement Considerations

Potential substitutes include the RJP4003ANS and RJP4003ASA from the same manufacturer family. Verify pin compatibility and electrical parameters such as VCES and ICM before substitution to ensure circuit integrity.
