Product Detailed Parameters

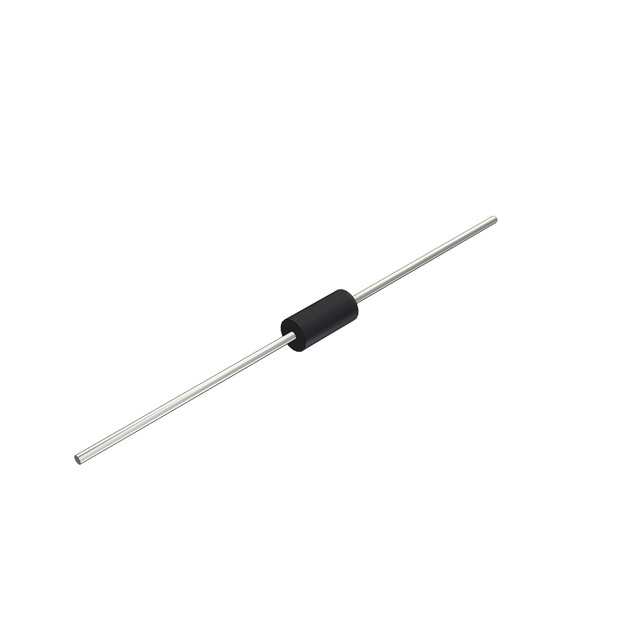

- Description：DIODE STANDARD 1000V 2A DO15
- Series：RL
- Mfr：HY Electronic (Cayman) Limited
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1000 V
- Current - Average Rectified (Io)：2A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 2 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 µA @ 1000 V
- Capacitance @ Vr, F：20pF @ 4V, 1MHz
- Mounting Type：Through Hole
- Package / Case：DO-204AC, DO-15, Axial
- Supplier Device Package：DO-15
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview
The RL207G is a general-purpose silicon rectifier diode manufactured by HY Electronic (Cayman) Limited. It belongs to the RL series, which provides voltage ratings ranging from 50V to 1000V with an average forward rectified current of 2.0 Amperes. The component utilizes a molded plastic JEDEC DO-15 package and features a color band indicating the cathode terminal. Key electrical characteristics include low reverse leakage current and low forward voltage drop, designed for efficient switching in standard rectification applications.
Feature Summary
- General-purpose silicon rectifier construction
- Low reverse leakage current capability
- Low forward voltage drop design
- JEDEC DO-15 molded plastic package
Applications
- AC to DC power supply rectification
- Polarity protection circuits
- General purpose switching applications
Procurement Notes
Verify the manufacturer designation as HY Electronic (Cayman) Limited against official datasheets. Confirm the specific suffix 'G' corresponds to RoHS compliance or specific packaging variants if documented by the manufacturer. Ensure the part number matches the exact voltage rating required for the target application circuit.
Selection Notes
Select this component for applications requiring a 2A continuous current rating within the 50V to 1000V reverse voltage range. The DO-15 package is suitable for through-hole mounting on printed circuit boards. Consider thermal management requirements based on the forward current load and ambient operating temperature conditions specified in the technical data.
Part Context
The RL207G is part of the broader RL series of silicon rectifiers produced by HY Electronic. This series encompasses various voltage ratings from 50V up to 1000V, all sharing the same 2.0A current capacity and DO-15 package form factor. It serves as a standard discrete semiconductor solution for basic power conversion tasks.
Replacement Considerations
Cross-reference with other manufacturers' RL207 equivalents such as those from Rectron Semiconductor or Won-Top Electronics. Verify pinout compatibility and ensure that alternative parts meet or exceed the 2.0A forward current and maximum reverse voltage specifications.
