RS8052XK

Overview

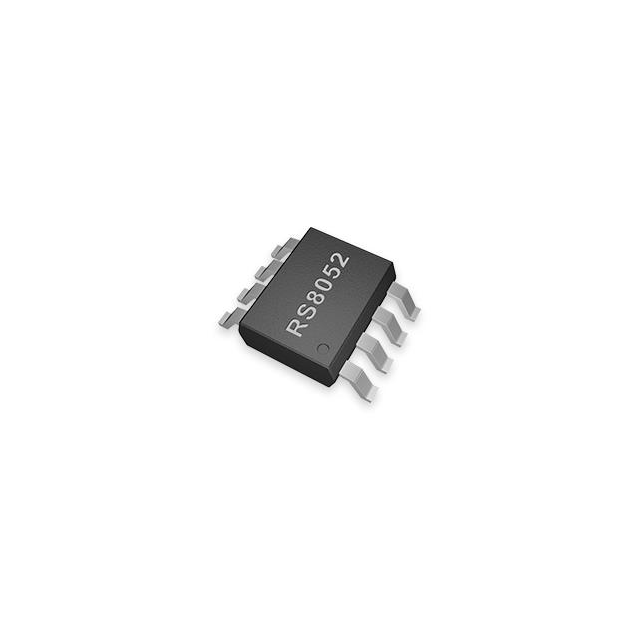

The RS8052XK is a dual-channel CMOS operational amplifier manufactured by Runic Technology. It features rail-to-rail output capability and operates within a supply voltage range of 2.5 V to 5.5 V. The device integrates two independent circuits in an 8-SOIC package. Key electrical specifications include a gain-bandwidth product of 11 MHz, a slew rate of 8.5 V/µs, and a typical input bias current of 1 pA. It supports a maximum output current of 65 mA per channel with a total supply current of 1.3 mA for both channels. The unit functions reliably across a temperature range of -40°C to 125°C.

Feature Summary

• Dual-channel CMOS architecture providing two independent amplifier circuits
• Rail-to-rail output swing capability for extended dynamic range
• Low input bias current characteristic suitable for high-impedance applications

Applications

• Precision instrumentation signal conditioning
• Buffer amplification in data acquisition systems
• Voltage reference buffering

Procurement Notes

Verify the specific suffix designation against the manufacturer's official datasheet to confirm pinout compatibility and electrical tolerances. Ensure the component meets RoHS3 compliance requirements if mandated by your assembly standards. Cross-reference the ordering information with authorized distributors to validate part authenticity and traceability before procurement.

Selection Notes

Select this component when a dual-channel solution with rail-to-rail output is required within a low-voltage single-supply environment. The CMOS technology offers low power consumption compared to bipolar alternatives. Consider the 8-SOIC package constraints for PCB layout and thermal management during the design phase.

Part Context

This component belongs to the RS805x series of linear amplifiers from Runic Technology. The series includes variants such as the RS8562XK, which shares similar packaging but may differ in specific performance metrics like offset voltage or bandwidth. The RS8052XK specifically targets general-purpose analog signal processing tasks requiring moderate speed and precision.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence with other dual CMOS op-amps only after consulting the official datasheet for pin compatibility and parameter overlap.
