Product Detailed Parameters
- Description：IC CMOS 4 CIRCUIT 14SOIC
- Series：-
- Mfr：Runic Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Amplifier Type：CMOS
- Number of Circuits：4
- Output Type：Rail-to-Rail
- Slew Rate：0.03V/µs
- Gain Bandwidth Product：100 kHz
- Current - Input Bias：1 pA
- Voltage - Input Offset：1.5 mV
- Current - Supply：670nA (x4 Channels)
- Current - Output / Channel：30 mA
- Voltage - Supply Span (Min)：1.4 V
- Voltage - Supply Span (Max)：5.5 V
- Operating Temperature：-40°C ~ 125°C
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：14-SOIC (0.154", 3.90mm Width)
- Supplier Device Package：14-SOIC
- -3db Bandwidth：-
Download product information
Overview

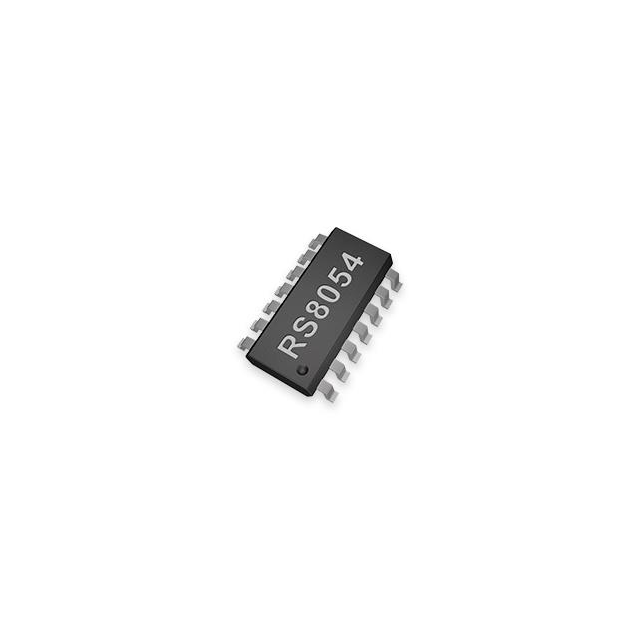

The RS8054XP is a quad CMOS operational amplifier manufactured by Runic Technology. It features four independent circuits in a 14-SOIC package. Key electrical parameters include a gain bandwidth product of 100 kHz and a supply current of 670 nA per channel. The device supports rail-to-rail output operation and provides a current output capability of 30 mA per channel.
Feature Summary
- Quad configuration integrating four independent operational amplifier circuits within a single component.
- CMOS technology enabling ultra-low power consumption suitable for battery-operated applications.
- Rail-to-rail output capability allowing signal swing from ground to the positive supply voltage.
Applications
- Battery-powered portable electronic devices requiring low quiescent current
- Signal conditioning circuits in sensor interfaces
- General-purpose analog processing in consumer electronics
Procurement Notes
Verify the specific datasheet version for the RS8054XP to confirm pinout compatibility and absolute maximum ratings. Ensure the supplier provides original manufacturer documentation to validate the CMOS process specifications and thermal characteristics before integration into final designs.
Selection Notes
Select this component when multiple low-power amplification stages are required in a compact surface-mount footprint. The 100 kHz bandwidth suits low-frequency signal processing tasks. Consider the 30 mA output drive capability for driving moderate loads without external buffering stages.
Part Context
Runic Technology specializes in high-performance analog integrated circuits, including operational amplifiers and precision regulators. The RS8054XP belongs to their general-purpose op-amp portfolio, designed to offer cost-effective solutions for mass-market electronics with stringent power constraints.
Replacement Considerations
Cross-reference with other quad CMOS op-amps offering similar 100 kHz bandwidth and 670 nA supply current. Verify pin compatibility and rail-to-rail output specifications to ensure functional equivalence in existing circuit layouts.
FAQ
What is the typical supply current per channel for the RS8054XP?
The typical supply current is 670 nA per channel.
Does the RS8054XP support rail-to-rail output?
Yes, the RS8054XP features rail-to-rail output capability.
