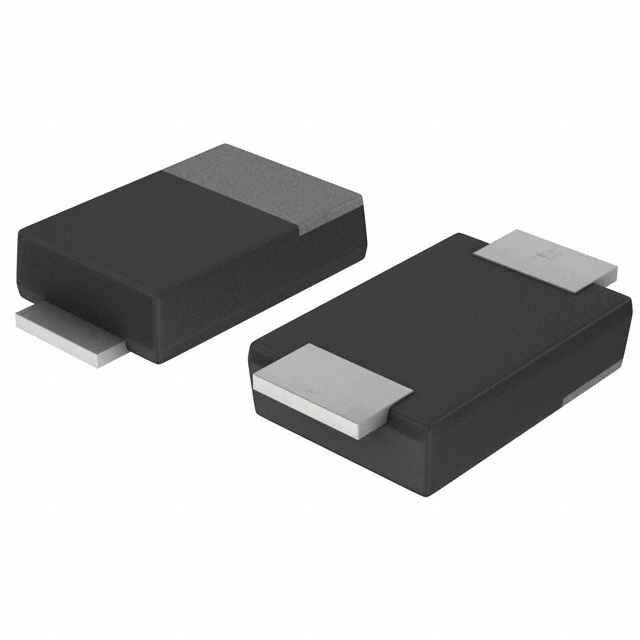

RSX301LA-30TR is listed in the Single Diodes range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is DIODE SCHOTTKY 30V 3A PMDT. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for RSX301LA-30TR
- Description：DIODE SCHOTTKY 30V 3A PMDT
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：420 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 30 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：SOD-128
- Supplier Device Package：PMDT
- Operating Temperature - Junction：150°C (Max)
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for RSX301LA-30TR
Single Diodes Overview
The RSX301LA-30TR is a silicon epitaxial planar Schottky barrier diode manufactured by ROHM Semiconductor. It features a single configuration in a PMDT-2 surface-mount package. Key electrical parameters include a repetitive peak reverse voltage of 30 V and an average rectified forward current of 2.0 A. The maximum forward voltage is 0.42 V at 3.0 A, with a maximum reverse current of 200 μA at 30 V. The device supports a peak surge forward current of 70 A and operates within a junction temperature range up to 150 °C.
Single Diodes Feature Summary
- Small and thin power mold type (PMDT) construction for compact designs
- Low reverse current and low forward voltage characteristics
- High reliability silicon epitaxial planer structure
Single Diodes Applications
- General rectification circuits
Single Diodes Procurement Notes
Verify the specific ordering suffix against official ROHM documentation to confirm tape-and-reel specifications and packaging details. Ensure the component meets RoHS compliance requirements for your target market. Confirm that the PMDT-2 package dimensions align with your PCB land pattern design before finalizing procurement.
Single Diodes Selection Notes
Select this component for applications requiring a compact Schottky diode with low forward voltage drop. The PMDT package offers a small footprint suitable for space-constrained designs. Consider the 30 V reverse voltage rating and 2.0 A continuous current capability when designing power supply or rectifier stages.
Single Diodes Part Context
This part belongs to the RSX series of Schottky barrier diodes from ROHM Semiconductor. The series utilizes a silicon epitaxial planar construction designed for general-purpose rectification. The RSX301LA variant specifically targets applications needing low VF and IR performance in a small surface-mount form factor.
Single Diodes Replacement Considerations
Consult official ROHM substitution guides for verified alternatives. Cross-reference pinout, package dimensions, and electrical ratings such as VRM, Io, and VF before considering any substitute components.
