S-881300CPE-IPATFG

Overview

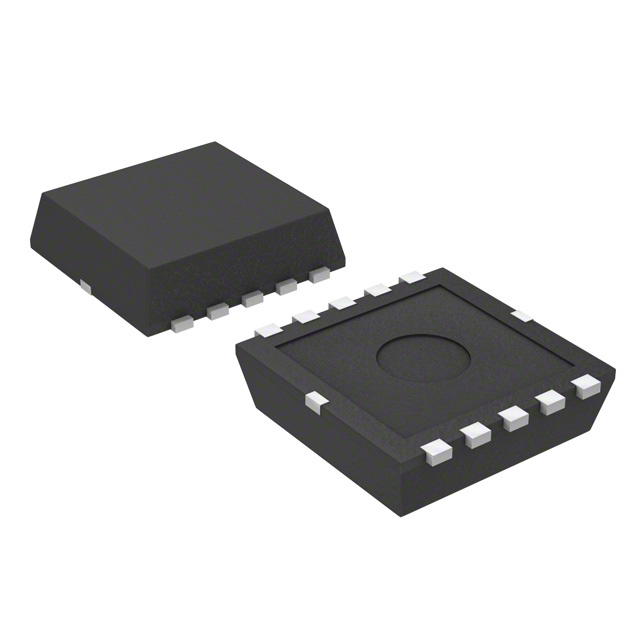

The S-881300CPE-IPATFG is a regulated LED driver IC manufactured by ABLIC Inc. It features a switched capacitor charge pump topology and supports three output channels with a regulation current of 23mA. The device is housed in a compact 10-SON package measuring 2.9x2.8 mm. It includes dimming functionality for precise light control applications.

Feature Summary

• Integrates a switched capacitor charge pump for efficient voltage regulation
• Provides three independent output channels for LED driving
• Supports external dimming control for brightness adjustment

Applications

• LED backlighting systems
• Indicator lighting circuits
• Portable electronic display modules

Procurement Notes

Verify the exact suffix IPATFG against the manufacturer's official datasheet to confirm pinout and thermal characteristics. Ensure the 10-SON package dimensions match the PCB footprint requirements. Confirm RoHS compliance status through the specific product documentation before integration.

Selection Notes

Select this component when a multi-channel LED driver with integrated charge pump is required. The 23mA output current suits low-power indicator or small display applications. The 10-SON package offers space efficiency for compact designs compared to larger packages.

Part Context

This part belongs to the S-881300 series of LED drivers from ABLIC. It is designed for applications requiring regulated current sources with minimal external components. The series focuses on energy-efficient solutions for portable devices using charge pump technology.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult ABLIC technical support for direct replacements within the S-881300 family or equivalent industry alternatives.
