Product Detailed Parameters
- Description：DIODE ARRAY GP 200V 8A TO263AB
- Series：-
- Mfr：Diotec Semiconductor
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io) (per Diode)：8A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 8 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：1.5 µs
- Current - Reverse Leakage @ Vr：5 µA @ 200 V
- Operating Temperature - Junction：-50°C ~ 150°C
- Mounting Type：Surface Mount

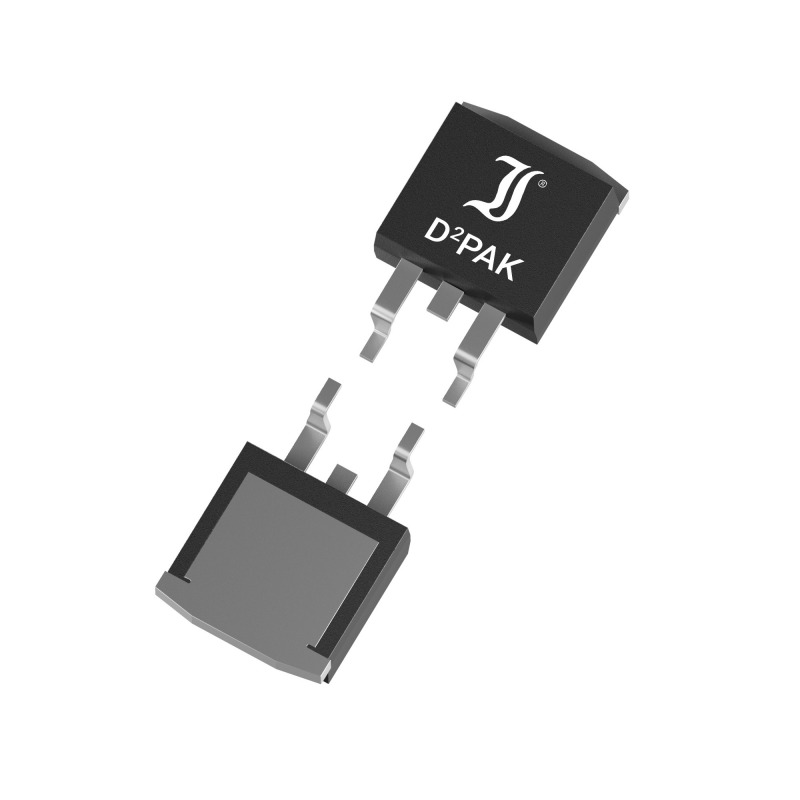

- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263AB (D2PAK)
- Grade：-
- Qualification：-
Download product information
Overview
The S16DSD2 is a standard recovery rectifier manufactured by Diotec Semiconductor, designed for surface-mount applications. It features a D2PAK package and supports a maximum repetitive reverse voltage of 200V with an average forward current rating of 8A per leg in its dual configuration. The device exhibits a maximum forward voltage of 1.1V and a reverse leakage current of 5uA. It operates within a temperature range of -55°C to +150°C junction temperature and includes a recovery time of 1.5us.
Feature Summary
- Dual common cathode configuration for efficient bridge or polarity protection circuits
- High thermal stability with a maximum junction temperature of 150°C
- Robust surge current handling capability suitable for industrial power supplies
Applications
- 50/60 Hz rectification in AC-DC converters
- Polarity protection in DC power input stages
- Industrial electronic control systems
- White home appliance power management
Procurement Notes
Verify the specific ordering suffix against the official Diotec Semiconductor datasheet to ensure correct packaging and tape-and-reel specifications. Confirm that the D2PAK footprint matches the target PCB design requirements. Check RoHS and REACH compliance status directly from the manufacturer's documentation before finalizing procurement orders.
Selection Notes
Select this component when a dual common cathode rectifier is required in a D2PAK package. Ensure the application voltage does not exceed 200V and the continuous current demand stays within the 8A per leg limit. Consider the 1.1V forward voltage drop for thermal management calculations in high-current scenarios.
Part Context
The S16DSD2 belongs to Diotec Semiconductor's standard recovery rectifier family. It is part of the S16xSD2 series, which provides reliable performance for general-purpose rectification tasks. The device complements other discrete semiconductors offered by Diotec for industrial and consumer electronics markets.
Replacement Considerations
Consult the official Diotec Semiconductor Product Change Notification (PCN) database for any approved substitute part numbers. Verify pinout compatibility and electrical parameter equivalence before replacing the component in existing designs.
