S3D08065I

S3D08065I is listed in the Single Diodes range at ChipApex. The manufacturer field lists SMC Diode Solutions. Its product description is DIODE SILICON 650V 27A TO220. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for S3D08065I

• Description：DIODE SILICON 650V 27A TO220
• Series：-
• Mfr：SMC Diode Solutions
• Package：Tube
• Technology：SiC (Silicon Carbide) Schottky
• Voltage - DC Reverse (Vr) (Max)：650 V
• Current - Average Rectified (Io)：27A
• Voltage - Forward (Vf) (Max) @ If：1.7 V @ 8 A
• Speed：No Recovery Time > 500mA (Io)
• Reverse Recovery Time (trr)：0 ns
• Current - Reverse Leakage @ Vr：10 µA @ 650 V
• Capacitance @ Vr, F：650pF @ 0V, 1MHz
• Mounting Type：Through Hole

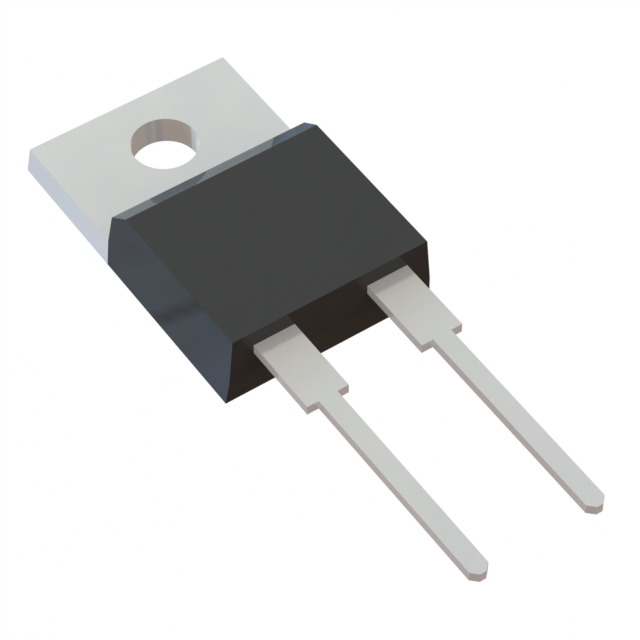

• Package / Case：TO-220-2 Isolated Tab
• Supplier Device Package：TO-220-Isolation
• Operating Temperature - Junction：-55°C ~ 175°C
• Grade：-
• Qualification：-

Single Diodes datasheet and documents for S3D08065I
