Product Detailed Parameters
- Description：600V SENSITIVE SCR IN SOT223 PAC
- Series：SxX8xSx
- Mfr：IXYS
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Off State：800 V
- Voltage - Gate Trigger (Vgt) (Max)：800 mV
- Current - Gate Trigger (Igt) (Max)：200 µA
- Current - Hold (Ih) (Max)：5 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm)：8A, 10A
- SCR Type：Sensitive Gate
- Operating Temperature：-40°C ~ 125°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：TO-236-3, SC-59, SOT-23-3
- Supplier Device Package：SOT-23-3
- Voltage - On State (Vtm) (Max)：1.7 V
- Current - On State (It (AV)) (Max)：510 mA
- Current - On State (It (RMS)) (Max)：800 mA
- Current - Off State (Max)：3 µA
Download product information
Overview

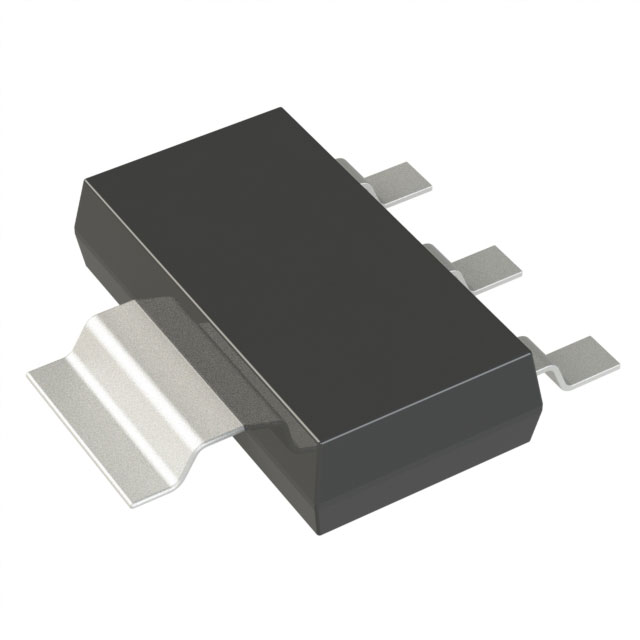

The S6X8TS3RP is a sensitive gate silicon controlled rectifier (SCR) manufactured by IXYS. It features an 800V repetitive peak off-state voltage and an RMS on-state current of 800mA. The device is housed in a surface-mount SOT-223 package, designed for compact circuit integration. It operates within a junction temperature range of -40°C to +125°C. Key electrical parameters include high static dv/dt capability and low turn-off time, making it suitable for applications requiring fast switching and robust performance in power control circuits.
Feature Summary
- Sensitive gate architecture enabling reliable triggering with low gate current requirements
- High static dv/dt rating for improved noise immunity and stability
- Low turn-off time (tq) optimized for high-frequency switching applications
- Surface-mount SOT-223 packaging for automated assembly and space efficiency
Applications
- High-speed AC power control systems
- Solid-state relay drivers
- Motor speed control circuits
- Lighting dimmer applications
Procurement Notes
Verify the specific suffix 'S' indicates the standard sensitive gate variant when sourcing. Confirm the SOT-223 footprint matches your PCB design constraints. Ensure the 800V rating aligns with your circuit's peak voltage requirements. Check datasheet revisions for any updates to thermal characteristics or maximum ratings before finalizing component selection.
Selection Notes
Select this component for applications requiring a compact, surface-mount SCR with high dv/dt immunity. The sensitive gate feature simplifies drive circuitry compared to standard SCRs. Consider the 800mA RMS current limit for load sizing. The SOT-223 package offers thermal advantages over through-hole options but requires appropriate PCB copper area for heat dissipation.
Part Context
This part belongs to the SxX8xSx EV series of sensitive SCRs from IXYS. These devices are engineered for modern power electronics where size and switching speed are critical. The series complements IXYS's broader portfolio of discrete semiconductors, focusing on efficient power management solutions for consumer and industrial equipment.
Replacement Considerations
Direct substitutes must match the 800V/800mA rating and SOT-223 package. Verify gate sensitivity and dv/dt specifications against original requirements. Cross-reference pinouts to ensure compatibility without redesigning the PCB layout.
