S73310-4.000-X-15-R

Oscillators Overview

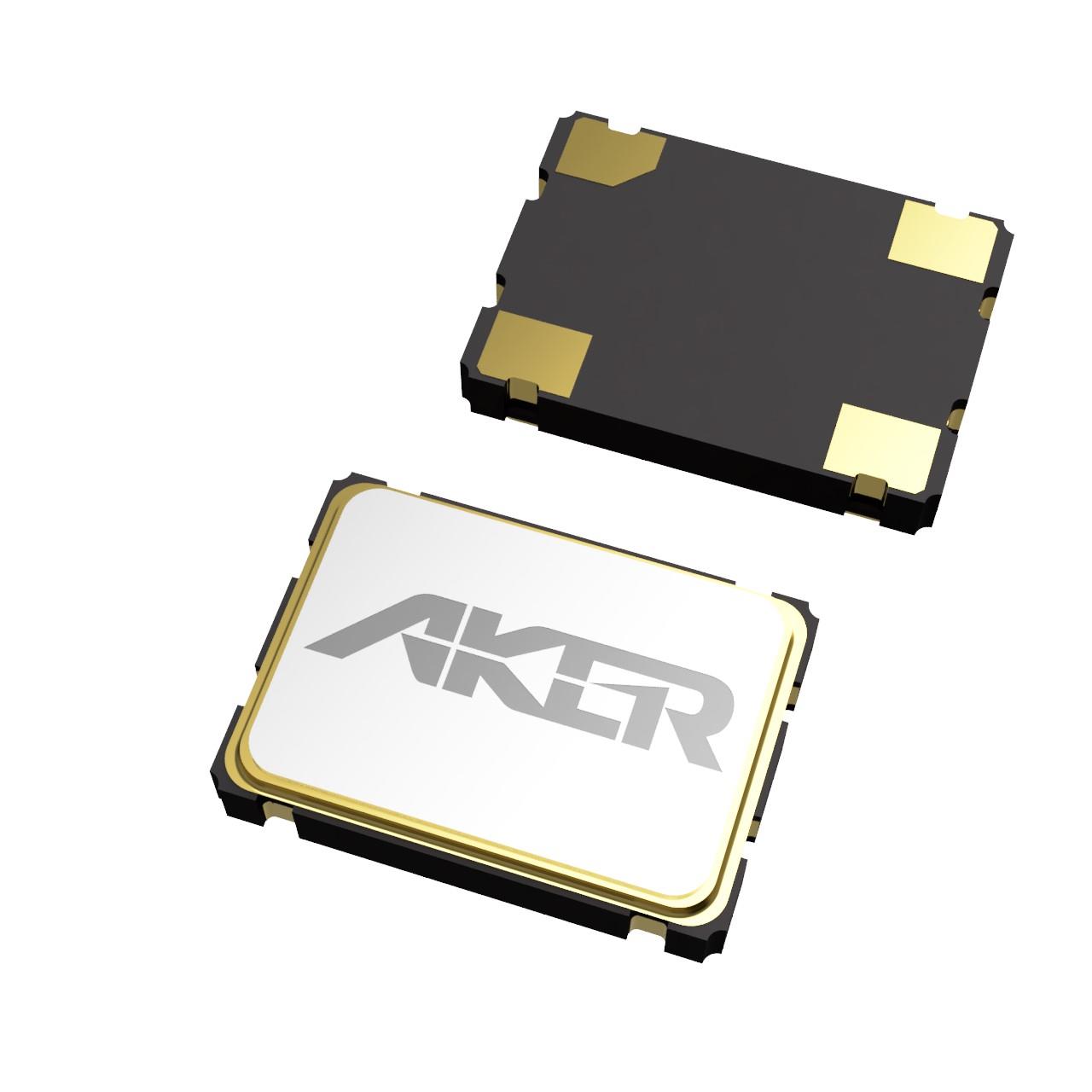

The S73310-4.000-X-15-R is a standard frequency crystal oscillator from the S7 Auto series, manufactured by Aker Technology Corp. It operates at a nominal frequency of 4 MHz and utilizes HCMOS output logic levels. The device is designed for surface-mount installation in a compact 4-SMD, no-lead package configuration. It functions with a supply voltage of 3.3 V and includes an enable/disable control feature for power management flexibility. The component supports a load capacitance specification of 15 pF, ensuring compatibility with standard circuit designs requiring precise timing signals.

Oscillators Feature Summary

• HCMOS output logic interface for digital signal compatibility
• Integrated enable and disable control functionality
• Surface-mount construction in a leadless SMD package

Oscillators Applications

• General-purpose electronic timing circuits
• Embedded system clock generation
• Consumer electronics timing references

Oscillators Procurement Notes

Verify the current production status before procurement, as availability records indicate potential discontinuation at major distributors. Confirm that the 3.3V supply requirement aligns with target system voltages. Ensure the HCMOS output swing matches downstream logic input thresholds. Validate the 4-SMD footprint dimensions against PCB layout constraints to guarantee proper assembly and soldering integrity.

Oscillators Selection Notes

Select this component when a low-cost, standard-frequency oscillator with enable control is required. The 4 MHz frequency suits basic microcontroller or communication interfaces. The 3.3V operation makes it suitable for modern low-voltage digital systems. Consider the HCMOS output type for direct interfacing with standard logic families without additional buffering.

Oscillators Part Context

This part belongs to the S7 Auto series of crystal oscillators from Aker Technology Corp, established in 1990. The manufacturer specializes in frequency control products for global electronics applications. The S7 series typically offers standard performance levels for cost-sensitive consumer and industrial markets, providing reliable timing solutions in compact surface-mount packages.

Oscillators Replacement Considerations

Check for direct substitutes within the S73310 series offering identical pinouts and electrical specifications. Verify if other manufacturers provide equivalent 4 MHz HCMOS oscillators with 3.3V operation and enable pins. Ensure any replacement maintains the same 4-SMD no-lead package dimensions for board compatibility.
