SB05-05P-TD-E is listed in the Single Diodes range at ChipApex. The manufacturer field lists onsemi. Its product description is DIODE SCHOTTKY 50V 500MA PCP. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SB05-05P-TD-E
- Description：DIODE SCHOTTKY 50V 500MA PCP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT),Bulk
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：50 V
- Current - Average Rectified (Io)：500mA
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 500 mA
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：10 ns
- Current - Reverse Leakage @ Vr：50 µA @ 25 V
- Capacitance @ Vr, F：18pF @ 10V, 1MHz
- Mounting Type：Surface Mount

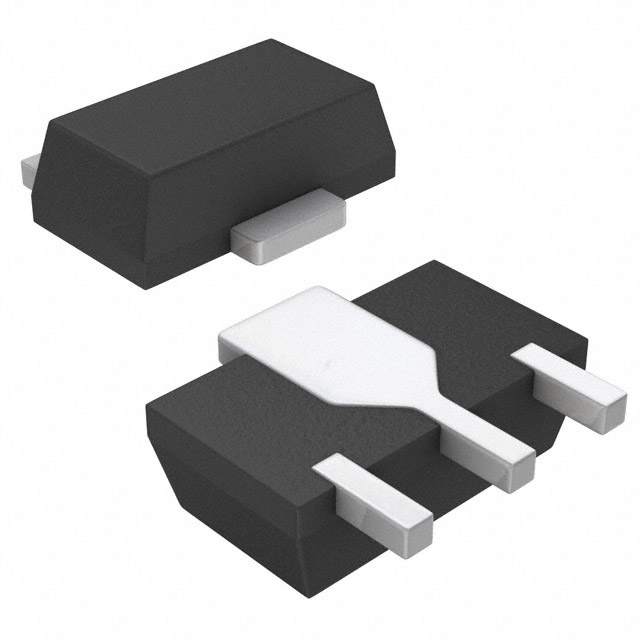

- Package / Case：TO-243AA
- Supplier Device Package：PCP
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SB05-05P-TD-E
Single Diodes Overview
The SB05-05P-TD-E is a Schottky Barrier Diode from onsemi, rated for 50V repetitive peak reverse voltage and 0.5A average forward current. It utilizes a PCP (SOT-89) package with Pb-free construction. Key electrical characteristics include a maximum forward voltage of 0.55V at 500mA, a maximum reverse recovery time of 10ns, and a maximum reverse leakage current of 50μA at 25V. The device operates within a junction temperature range of -55°C to +125°C.
Single Diodes Feature Summary
- Low forward voltage for improved efficiency
- Fast reverse recovery time for high-frequency operation
- Low switching noise generation
- High reliability due to planar structure
Single Diodes Applications
- Switching regulators
- Converters
- Choppers
Single Diodes Procurement Notes
Verify the specific ordering suffix TD-E confirms the PCP package type and tape-and-reel shipping configuration containing 1,000 pieces per reel. Ensure compliance with RoHS standards by checking for the Pb-Free designation in official documentation before finalizing procurement specifications.
Single Diodes Selection Notes
Select this component for applications requiring low forward voltage drop and fast switching speeds. The PCP package provides a compact footprint suitable for surface-mount designs. Verify thermal resistance requirements against the specified Rth(j-a) values for both free-air and mounted conditions to ensure adequate heat dissipation.
Single Diodes Part Context
This part belongs to the SB05 series of Schottky Barrier Diodes manufactured by onsemi. The series is designed for general-purpose rectification where low loss and fast response are critical. The SB05-05P variant specifically offers 50V blocking capability and 0.5A current handling in a single diode configuration.
Single Diodes Replacement Considerations
Consult official cross-reference lists or distributor databases for verified equivalent parts. Ensure any substitute matches the 50V rating, 0.5A current capacity, PCP/SOT-89 package dimensions, and electrical characteristics such as forward voltage and reverse recovery time.
