SB1030DC_R2_00001

$1.05

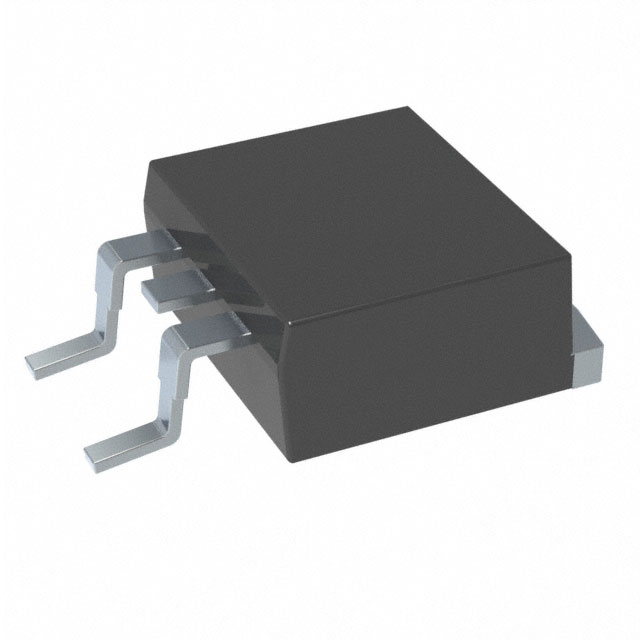

Description：DIODE ARRAY SCHOT 30V 10A TO-263
Series：-

SKU:fb7af7cf5fcf Category: Diode Arrays Brand: Panjit International Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY SCHOT 30V 10A TO-263
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io) (per Diode)：10A
Voltage - Forward (Vf) (Max) @ If：550 mV @ 5 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：200 µA @ 30 V
Operating Temperature - Junction：-55°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device Package：TO-263
Grade：-
Qualification：-

Download product information

SB1030DC_R2_00001

Overview

The SB1030DC_R2_00001 is a Schottky barrier rectifier manufactured by Panjit International Inc. It features a maximum average forward current of 10 A and a maximum repetitive peak reverse voltage of 30 V. The device utilizes a TO-263 molded plastic case with solder-plated terminals compliant with MIL-STD-750 Method 2026. Electrical characteristics include a maximum forward voltage of 0.75 V at 5 A, a peak forward surge current of 150 A, and a typical thermal resistance of 3.0 °C/W. Operating junction temperature ranges from -55 to +150 °C.

Feature Summary

Utilizes majority carrier conduction for low power loss and high efficiency.
Constructed with flame retardant epoxy molding compound classified as UL 94V-O.
Designed for high surge capacity and robust performance in low voltage applications.

Applications

Low voltage high frequency inverters
Free wheeling circuits
Polarity protection

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm packaging details. Confirm RoHS compliance status through the manufacturer's latest environmental reports. Ensure the component meets the required flammability classification for the target assembly process. Validate terminal solderability specifications prior to integration.

Selection Notes

Select this component for designs requiring a 10 A continuous current rating with a 30 V blocking capability. Consider the TO-263 package dimensions for adequate heat dissipation relative to the 3.0 °C/W thermal resistance. Evaluate derating curves for capacitive loads to ensure safe operation within the specified junction temperature limits.

Part Context

This part belongs to the SB1020DC series, which includes variants ranging from 20 V to 60 V reverse voltage ratings. All members share identical mechanical housing and thermal characteristics while differing in electrical breakdown thresholds. The series is engineered for surface mount applications requiring reliable rectification in compact form factors.

Replacement Considerations

Cross-reference other SB1030DC variants from Panjit or equivalent manufacturers offering matching 10 A/30 V specifications. Verify pinout compatibility and thermal resistance values before substitution.
