SB15AFC_R1_00001

Single Diodes Overview

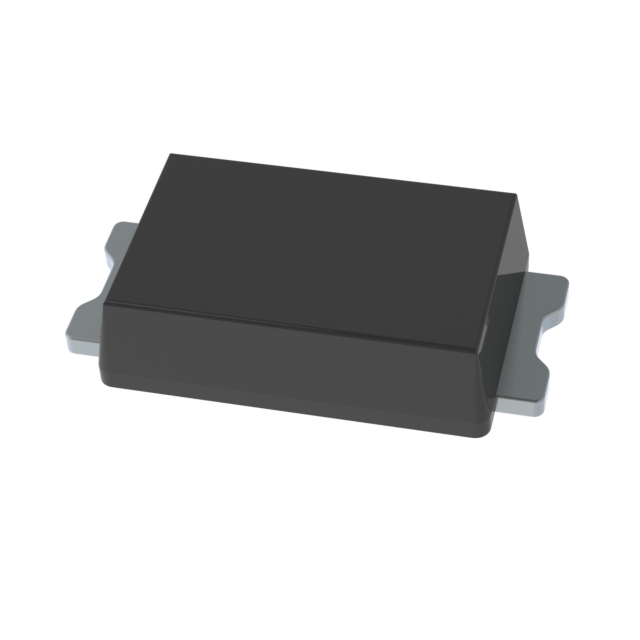

The SB15AFC_R1_00001 is a surface-mount Schottky barrier rectifier manufactured by Panjit International Inc. It features a maximum average forward rectified current of 1 A and a repetitive peak reverse voltage of 50 V. The device utilizes the SMAF-C package for compact PCB integration. Key electrical specifications include a low forward voltage drop characteristic typical of Schottky technology, ensuring high efficiency in power conversion applications. The component is designed for operation within a standard junction temperature range suitable for general electronic assemblies.

Single Diodes Feature Summary

• Schottky barrier construction for low forward voltage drop and high switching efficiency
• Surface-mount SMAF-C package design for automated assembly and space-constrained layouts
• High surge overload capability to withstand transient current events

Single Diodes Applications

• General purpose rectification in consumer electronics
• DC-DC converter output stages
• Power supply input protection circuits

Single Diodes Procurement Notes

Verify the specific suffix R1_00001 against the manufacturer's official datasheet to confirm tape-and-reel packaging quantities and marking codes. Ensure compatibility with RoHS directives if required by your assembly standards. Cross-reference the SMAF-C footprint dimensions with your PCB library to prevent mechanical interference during placement.

Single Diodes Selection Notes

Select this component when a 50 V reverse voltage rating and 1 A continuous current capacity are sufficient for the circuit design. The SMAF-C package offers a smaller profile compared to standard SMA or SMB cases, making it suitable for dense board layouts. Consider the thermal management requirements associated with the 1 A current rating in the chosen enclosure environment.

Single Diodes Part Context

This part belongs to Panjit's SB series of Schottky rectifiers, which are engineered for low-loss power rectification. The SMAF-C variant specifically targets applications requiring reduced board space while maintaining robust performance characteristics. It serves as a modern alternative to larger through-hole or standard surface-mount diodes in portable and compact electronic devices.

Single Diodes Replacement Considerations

Direct substitutes must match the 50 V / 1 A Schottky specification and SMAF-C package. Verify pinout compatibility and thermal resistance values before substitution. Generic equivalents may differ in forward voltage characteristics or surge current handling capabilities.
