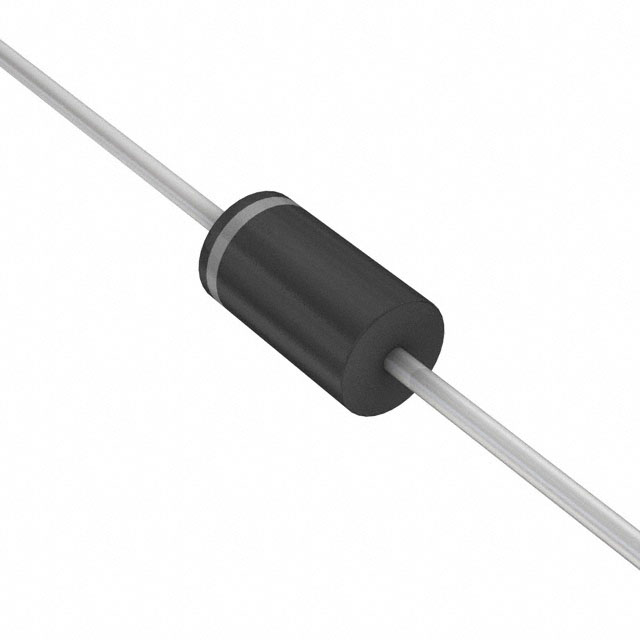

SB540B-G is listed in the Single Diodes range at ChipApex. The manufacturer field lists Comchip Technology. Its product description is DIODE SCHOTTKY 40V 5A DO201AD. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SB540B-G
- Description：DIODE SCHOTTKY 40V 5A DO201AD
- Series：-
- Mfr：Comchip Technology
- Package：Bulk
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：5A
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 5 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 40 V
- Capacitance @ Vr, F：350pF @ 4V, 1MHz
- Mounting Type：Through Hole
- Package / Case：DO-201AD, Axial
- Supplier Device Package：DO-201AD
- Operating Temperature - Junction：-65°C ~ 125°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SB540B-G
Single Diodes FAQ
Is the SB540B-G a surface-mount or through-hole component?
The SB540B-G is a through-hole Schottky rectifier.
What package type does the SB540B-G utilize?
It utilizes the DO-201AD (DO-15) axial leaded package.
