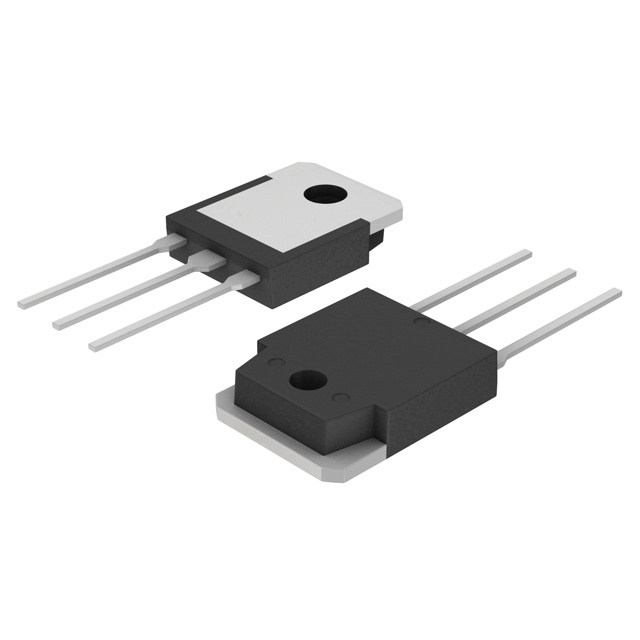

SBL2030PT is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE ARRAY SCHOTT 30V 20A TO-3P. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for SBL2030PT
- Description：DIODE ARRAY SCHOTT 30V 20A TO-3P
- Series：-
- Mfr：Diodes Incorporated
- Package：Tube
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io) (per Diode)：20A
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 10 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：1 mA @ 30 V
- Operating Temperature - Junction：-65°C ~ 150°C
- Mounting Type：Through Hole
- Package / Case：TO-3P-3, SC-65-3
- Supplier Device Package：TO-3P
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for SBL2030PT
Diode Arrays Overview
The SBL2030PT is a dual common-cathode Schottky barrier rectifier manufactured by Diodes Incorporated in a TO-3P package. It features a peak repetitive reverse voltage of 30 V and an average rectified output current of 20 A at a case temperature of 100°C. The device exhibits a forward voltage drop of 0.55 V at 10 A and supports a non-repetitive peak forward surge current of 250 A. Typical thermal resistance from junction to case is 2.5 °C/W, with an operating temperature range spanning -65°C to +150°C.
Diode Arrays Feature Summary
- Guard ring die construction provides transient protection
- Low power loss and high efficiency operation
- High surge capability for robust performance
Diode Arrays Applications
- Low voltage, high frequency inverters
- Free wheeling diode circuits
- Polarity protection applications
Diode Arrays Procurement Notes
Verify the specific revision level of the datasheet DS23047 Rev. 5 before procurement. Confirm that the TO-3P packaging matches the required mechanical dimensions for the target application. Ensure compliance with RoHS directives as specified in the ordering information section of the official documentation.
Diode Arrays Selection Notes
Select this component for applications requiring low forward voltage drop and high efficiency in low voltage environments. Consider the 2.5 °C/W thermal resistance when designing heatsinking solutions. Verify that the 30 V reverse voltage rating aligns with the maximum circuit operating conditions.
Diode Arrays Part Context
This part belongs to the SBL2030PT through SBL2060PT series of 20A Schottky Barrier Rectifiers. The series utilizes Schottky barrier chip technology to achieve low forward voltage drops and high switching speeds. The components are housed in molded plastic cases with bright tin plated leads suitable for standard soldering processes.
Diode Arrays Replacement Considerations
Diodes Incorporated marks this component as not recommended for new design. Evaluate alternative Schottky rectifiers in the TO-3P package with equivalent 20A current ratings and 30V reverse voltage capabilities.
