SBM1560LSS_AY_00001

Single Diodes Overview

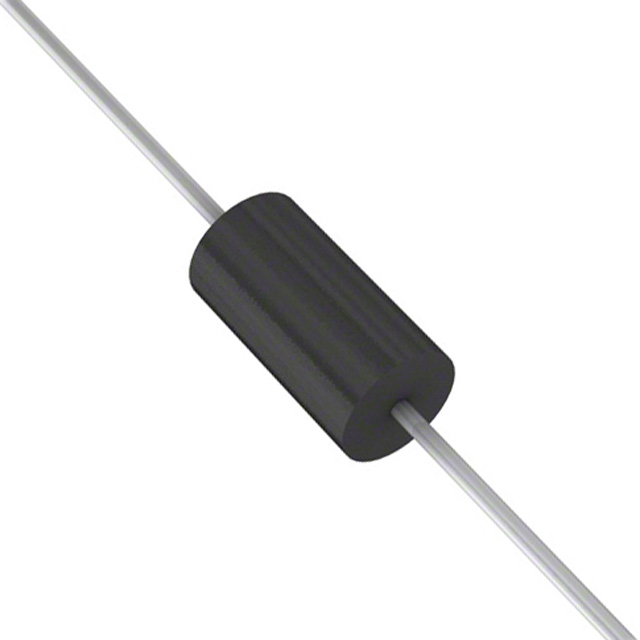

The SBM1560LSS_AY_00001 is a Schottky rectifier manufactured by Panjit International Inc. It features a maximum repetitive peak reverse voltage of 60 V and an average forward rectified current of 15 A. The device utilizes the DO-201AD through-hole package. It is classified as an ultra-low forward voltage (VF) component designed for high-efficiency power conversion applications.

Single Diodes Feature Summary

• Ultra-low forward voltage characteristic for enhanced efficiency
• High current handling capability of 15 amperes
• Robust 60-volt reverse voltage blocking rating

Single Diodes Applications

• General-purpose rectification in power supplies
• Free-wheeling diodes in DC-DC converters
• Reverse polarity protection circuits

Single Diodes Procurement Notes

Verify the exact suffix AY_00001 against official Panjit documentation to confirm specific tape-and-reel or bulk packaging requirements. Ensure the DO-201AD lead form matches the target PCB footprint. Confirm RoHS compliance status with the manufacturer prior to final procurement decisions.

Single Diodes Selection Notes

Select this component when low forward voltage drop is critical for thermal management in high-current applications. The 15A rating suits medium-power industrial and consumer electronics designs. Verify that the 60V breakdown voltage exceeds the circuit's peak inverse voltage under all operating conditions.

Single Diodes Part Context

This part belongs to Panjit's SBM series of Schottky rectifiers. The series is engineered for low loss and fast switching. The DO-201AD package provides mechanical stability for through-hole mounting, distinguishing it from surface-mount alternatives within the same electrical family.

Single Diodes Replacement Considerations

Consult official substitution lists for equivalent 60V 15A Schottky diodes in DO-201AD packages. Verify matching forward voltage and reverse leakage specifications before replacing.
