SBR2U100LP-7

Single Diodes Overview

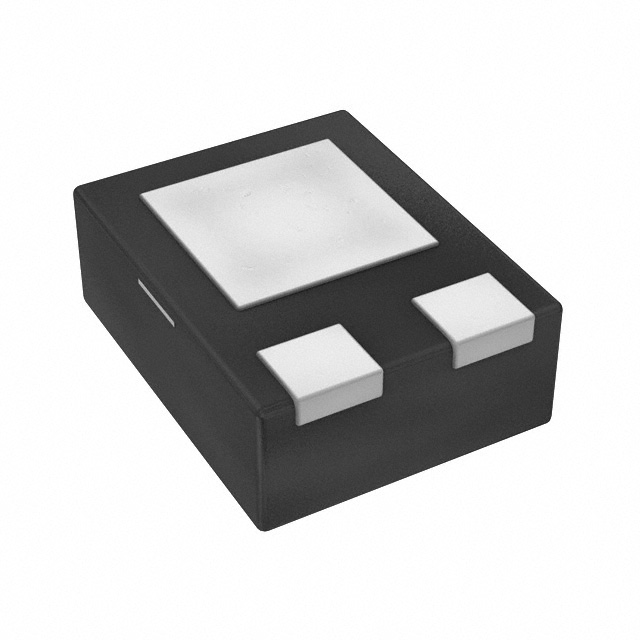

The SBR2U100LP-7 is a Super Barrier Rectifier (SBR) diode manufactured by Diodes Incorporated, designed for automotive applications. It features a peak repetitive reverse voltage of 100 V and an average rectified output current of 1.5 A. The device exhibits a maximum forward voltage drop of 0.85 V at 1.5 A and a maximum leakage current of 50 µA at +25°C. It operates within a junction temperature range up to +175°C and utilizes an X1-DFN1411-3 surface-mount package.

Single Diodes Feature Summary

• Patented Super Barrier Rectifier technology providing low forward voltage drop and excellent high-temperature stability
• Soft, fast switching capability suitable for efficient power conversion
• Qualified to AEC-Q101 standards ensuring high reliability for automotive environments
• Totally lead-free, fully RoHS compliant, and halogen and antimony free

Single Diodes Applications

• Polarity protection circuits
• Recirculating diode configurations
• Switching diode implementations
• Bypass diode applications

Single Diodes Procurement Notes

Verify the specific ordering suffix '-7' corresponds to the 3,000-unit tape and reel packaging configuration. Confirm that the component meets the required AEC-Q101 qualification standards for your specific automotive application environment. Ensure compatibility with the X1-DFN1411-3 footprint during PCB layout verification.

Single Diodes Selection Notes

Select this component when a single Schottky-style rectifier is needed in a compact surface-mount form factor. The 100V rating and 1.5A current capacity define its operational limits. Consider the thermal resistance characteristics and derating curves if operating near maximum junction temperatures or ambient conditions.

Single Diodes Part Context

This part belongs to the SBR2U100 series from Diodes Incorporated. It represents a specialized class of rectifiers combining the low loss of Schottky diodes with the robustness of standard silicon devices. The series targets high-reliability markets requiring small footprints and high thermal performance.

Single Diodes Replacement Considerations

Direct substitutes must match the 100V reverse voltage, 1.5A current rating, and X1-DFN1411-3 package dimensions. Verify equivalent forward voltage and leakage specifications to ensure circuit performance parity.
