Product Detailed Parameters
- Description：IC LED DRIVER RGLTR 8MLPD
- Series：-
- Mfr：Semtech Corporation
- Package：Tape & Reel (TR)
- Type：DC DC Regulator
- Topology：Step-Up (Boost)
- Internal Switch(s)：Yes
- Number of Outputs：1
- Voltage - Supply (Min)：1.55V
- Voltage - Supply (Max)：10V
- Voltage - Output：38V
- Current - Output / Channel：-
- Frequency：-
- Dimming：-
- Applications：Backlight
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount

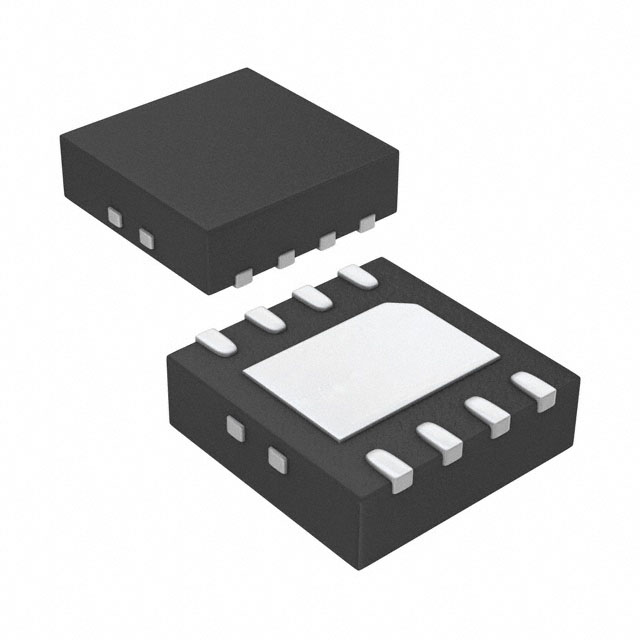

- Package / Case：8-VDFN Exposed Pad
- Supplier Device Package：8-MLPD (3x3)
- Grade：-
- Qualification：-
Download product information
Overview
The SC104IMLTRT is a micro power constant-current DC-DC converter designed for LED driver applications. Manufactured by Semtech Corporation, this component operates within an ambient temperature range of -40°C to +85°C. It utilizes an 8-MLPD (3x3) surface-mount package with an exposed pad. The device functions as a PMIC LED driver, integrating the necessary control circuitry for efficient light management in compact designs.
Feature Summary
- Integrates micro power constant-current DC-DC conversion capabilities
- Designed specifically for LED driver IC applications
- Utilizes an 8-MLPD surface-mount package with an exposed pad
Applications
- LED backlighting systems
- Compact lighting modules requiring integrated drivers
- Portable electronic devices with space-constrained PCB layouts
Procurement Notes
Verify the specific ordering suffix and package variant against the official Semtech datasheet before procurement. Confirm that the 8-MLPD footprint matches your PCB design requirements. Ensure compatibility with your system's thermal management strategy given the exposed pad configuration. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.
Selection Notes
Select this component when a highly integrated, low-power solution is required for driving LEDs in small form factors. The 8-MLPD package offers a compact footprint suitable for dense board layouts. Consider the operating temperature range of -40°C to +85°C for environmental suitability. Evaluate the integration level to reduce external component count compared to discrete solutions.
Part Context
This part belongs to Semtech's portfolio of power management integrated circuits, specifically focusing on LED drivers. It represents a specialized solution for managing current in lighting applications where size and power efficiency are critical constraints. The device integrates switching regulation and current control into a single small package.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pin-to-pin compatibility and electrical specifications if considering alternative manufacturers or newer revisions from Semtech.
