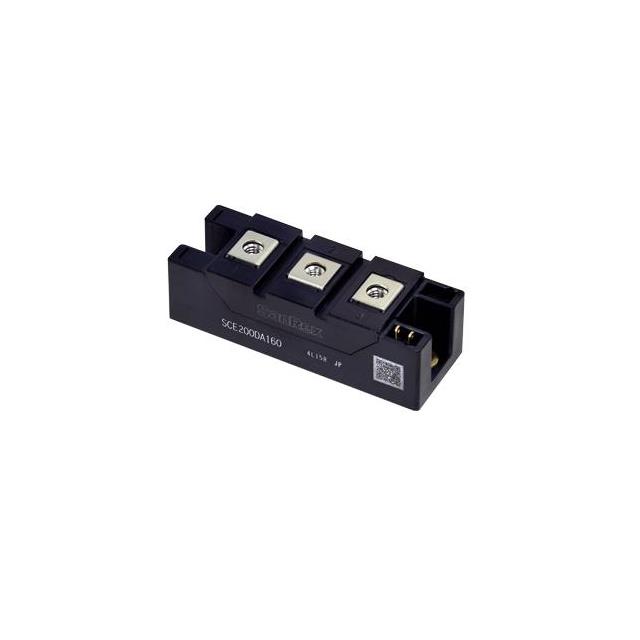

SCE160CA200
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：THYRISTOR MODULE 2000V 160A
- Series：-
- Mfr：SanRex Corporation
- Package：Tray
- Structure：Series Connection - SCR/Diode
- Number of SCRs, Diodes：1 SCR, 1 Diode
- Voltage - Off State：2 kV
- Current - On State (It (AV)) (Max)：160 A
- Current - On State (It (RMS)) (Max)：251 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：4100A, 4500A
- Operating Temperature：-40°C ~ 130°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：100 mA
- Current - Hold (Ih) (Max)：180 mA
- Grade：-
- Qualification：-
Download product information
Overview
The SCE160CA200 is a silicon thyristor module from the SCE series, rated for a repetitive peak reverse voltage of 2000 V and an average on-state current of 160 A. It features a critical rate of rise of on-state current (di/dt) of 500 A/µs and a surge on-state current capacity of 4100 A at 50 Hz. The device operates within a junction temperature range of -40°C to +130°C and includes UL recognition under file E76102.
Feature Summary
- Integrated gate design providing high di/dt capability
- Newly designed internal structure with reduced layer count for improved heat dissipation
- Dual-side chip soldering for enhanced long-term reliability
Applications
- Motor drives
- Servo controllers
- Power controllers
- Power supplies
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer's part number against official SanRex documentation. Confirm that the specific ordering suffix matches the required electrical ratings and package configuration. Ensure compliance with RoHS directives and verify UL recognition status before integration into final assemblies.
Selection Notes
Select this module for applications requiring robust high-voltage handling and reliable thermal management. The integrated gate design supports high di/dt requirements, while the low thermal resistance facilitates efficient heat transfer. Verify that the operating junction temperature remains within the specified limits during continuous operation.
Part Context
This component belongs to the SCE series of discrete semiconductor modules manufactured by SanRex. It utilizes silicon technology and is housed in a screw-mount package suitable for industrial power electronics. The module integrates thyristor functionality with specific thermal and electrical characteristics optimized for heavy-duty applications.
Replacement Considerations
Consult official SanRex documentation for verified substitute part numbers. Do not assume interchangeability based on generic specifications alone. Verify that any replacement matches the exact voltage, current, and thermal ratings required for the application.
FAQ
What is the maximum repetitive peak reverse voltage rating?
The SCE160CA200 has a maximum repetitive peak reverse voltage (VRRM) rating of 2000 V.
How does the gate design affect performance?
The new and unique gate design provides higher di/dt capability, allowing the device to handle rapid increases in on-state current more effectively.
What is the recommended mounting torque for the terminals?
The recommended mounting torque for the M6 terminals is between 2.5 and 3.9 N·m, with a maximum value of 4.7 N·m.
