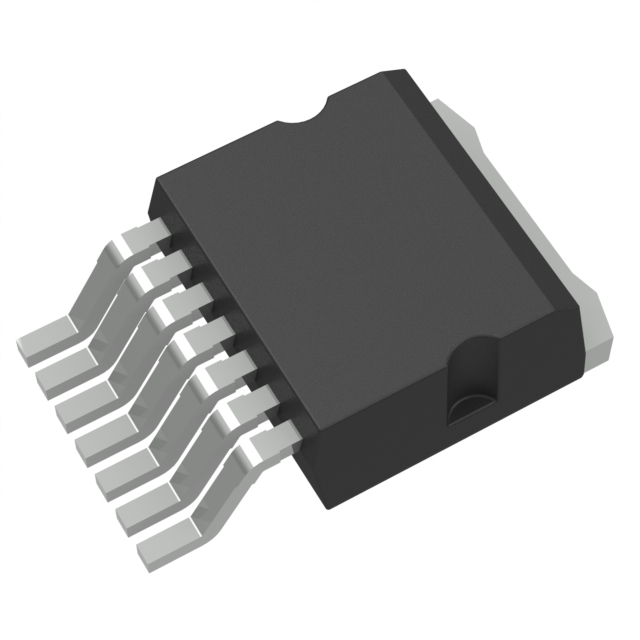

SCT4026DWAHRTL is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is 750V, 51A, 7-PIN SMD, TRENCH-STR. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for SCT4026DWAHRTL
- Description：750V, 51A, 7-PIN SMD, TRENCH-STR
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss)：750 V
- Current - Continuous Drain (Id) @ 25°C：51A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：18V
- Rds On (Max) @ Id, Vgs：34mOhm @ 29A, 18V
- Vgs(th) (Max) @ Id：4.8V @ 15.4mA
- Gate Charge (Qg) (Max) @ Vgs：94 nC @ 18 V
- Vgs (Max)：+21V, -4V
- Input Capacitance (Ciss) (Max) @ Vds：2320 pF @ 500 V
- FET Feature：-
- Power Dissipation (Max)：-
- Operating Temperature：175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount
- Supplier Device Package：TO-263-7LA
- Package / Case：TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Single FETs, MOSFETs datasheet and documents for SCT4026DWAHRTL
Single FETs, MOSFETs Overview
The SCT4026DWAHRTL is a 750V N-channel Silicon Carbide (SiC) MOSFET from ROHM Semiconductor, utilizing a trench structure for enhanced performance. It features a typical drain-source on-state resistance of 26 mΩ and supports a continuous drain current of 51A. The device operates with a gate-source voltage range of -4V to +21V and has a maximum power dissipation of 150W. It is qualified to AEC-Q101 standards for automotive applications.
Single FETs, MOSFETs Feature Summary
- Qualified to AEC-Q101 automotive grade standards for high reliability
- Trench structure design achieves low on-resistance and fast switching speed
- Wide creepage distance ensures safety in high-voltage environments
Single FETs, MOSFETs Applications
- Automotive power electronics systems
- High-efficiency DC-DC converters
- On-board chargers (OBC)
- Traction inverters
Single FETs, MOSFETs Procurement Notes
Verify the specific suffix HRTL against the manufacturer's official datasheet to confirm packaging details and automotive qualification status. Ensure compatibility with AEC-Q101 requirements if used in certified automotive assemblies. Cross-reference the part number with authorized distributors to avoid counterfeit components.
Single FETs, MOSFETs Selection Notes
Select this component for designs requiring robust automotive-grade SiC performance with low conduction losses. The 26 mΩ Rds(on) offers efficiency improvements over previous generations. Consider the TO-263-7LA package for surface-mount thermal management needs in compact automotive modules.
Single FETs, MOSFETs Part Context
This part belongs to ROHM's fourth-generation SiC MOSFET series, which improves short-circuit withstand time and reduces switching loss by approximately 50% compared to conventional products. The family emphasizes ease of drive with optimized gate voltage characteristics.
Single FETs, MOSFETs Replacement Considerations
SCT4026DWATL: Standard industrial grade equivalent without automotive qualification. SCT4026DW7HR: Automotive grade alternative with identical electrical specifications.
