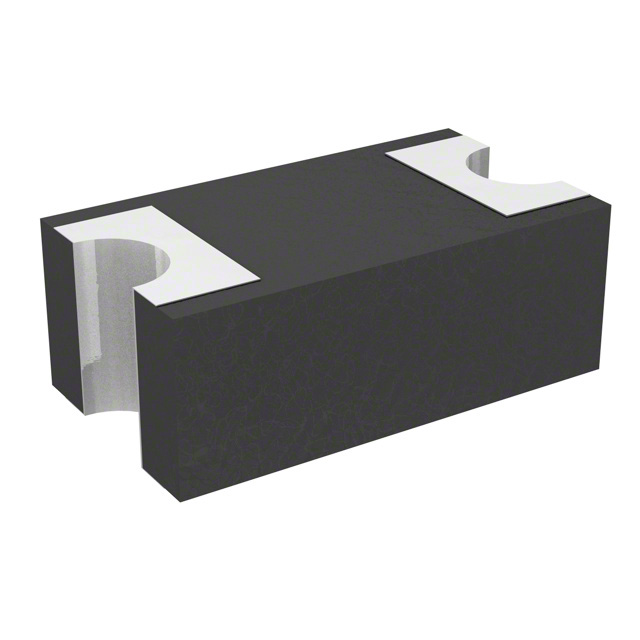

SD0603S040S0R2 is listed in the Single Diodes range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is DIODE SCHOTTKY 40V 200MA 0603. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SD0603S040S0R2
- Description：DIODE SCHOTTKY 40V 200MA 0603
- Series：-
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：200mA
- Voltage - Forward (Vf) (Max) @ If：450 mV @ 200 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：1 µA @ 40 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：0603 (1608 Metric)
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SD0603S040S0R2
Single Diodes Overview
The SD0603S040S0R2 is a Schottky barrier rectifier diode manufactured by KYOCERA AVX. It features a lead-less chip form factor in the 0603 (1608 metric) package size. The device has a maximum reverse voltage of 40 V and a maximum forward current of 0.2 A. Electrical characteristics include a typical forward voltage of 0.43 V at 0.2 A, with a maximum of 0.45 V. The maximum reverse current is 0.001 mA at 40 V. Thermal resistance from junction to ambient is 160 °C/W, while junction to lead is 110 °C/W. Junction capacitance is 35 pF. Operating temperature ranges from -55°C to 125°C.
Single Diodes Feature Summary
- Lead-less chip packaging technology providing top-bottom symmetry for improved mounting reliability and heat transfer.
- Low forward voltage drop contributing to high efficiency and low power loss.
- UL 94V-0 rated package material that is halogen-free.
Single Diodes Applications
- Switch mode power supplies
- High frequency rectification
- Portable battery powered devices
- Reverse bias protection
Single Diodes Procurement Notes
Verify component authenticity against official KYOCERA AVX documentation before integration. Confirm package dimensions and marking codes match the datasheet specifications. Ensure storage and operating conditions remain within the specified thermal limits to maintain performance integrity.
Single Diodes Selection Notes
Select this component for applications requiring compact surface-mount solutions with low forward voltage characteristics. The 0603 footprint suits space-constrained designs. Evaluate thermal management requirements given the specific thermal resistance values provided in the electrical characteristics table.
Single Diodes Part Context
This part belongs to the SD series of Schottky Barrier Rectifier Diodes utilizing lead-less chip form technology. The series offers various voltage and current ratings across multiple EIA package sizes including 0603, 0805, 1206, 2010, 2114, and 3220. The lead-less design eliminates lead frames to enhance current handling and heat dissipation compared to traditional SOD packages.
Single Diodes Replacement Considerations
Consult the manufacturer's catalog for direct substitutes within the SD series offering identical or compatible electrical parameters and package dimensions. Verify pinout compatibility and thermal performance when considering alternatives from other manufacturers.
