Product Detailed Parameters

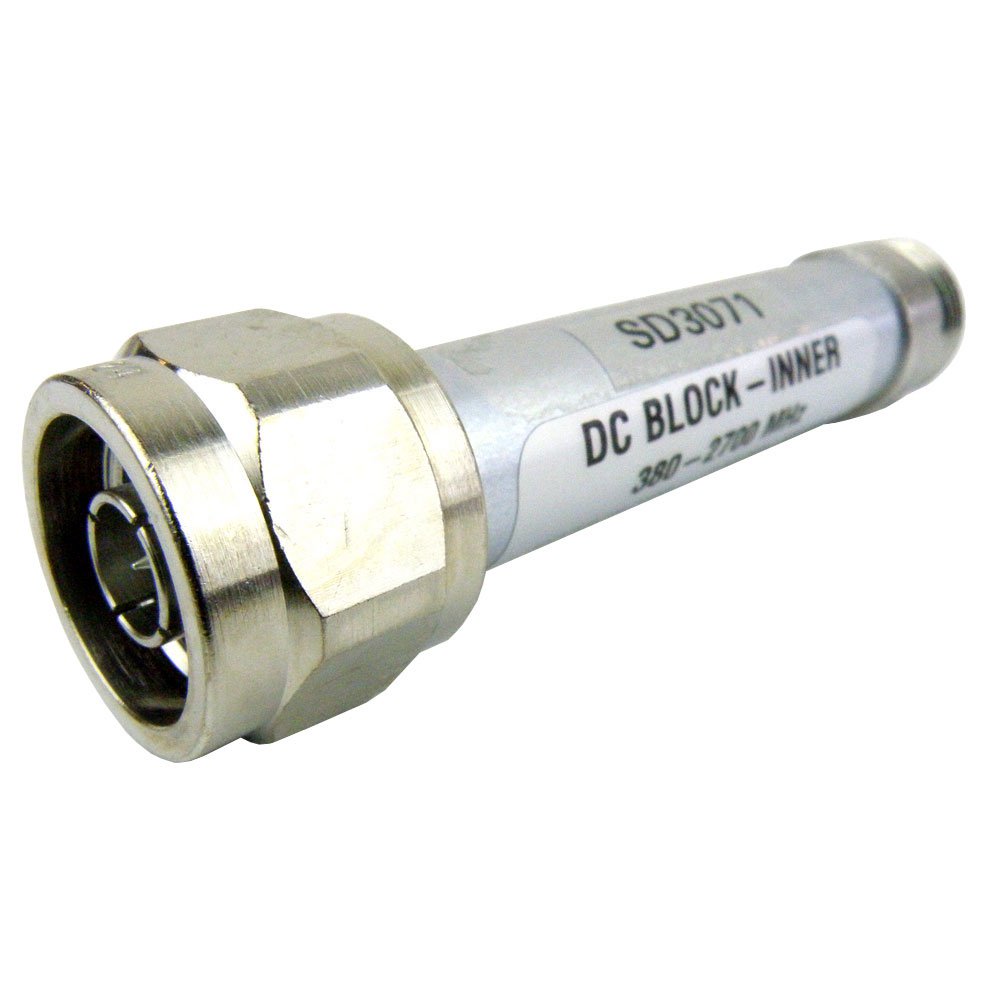

- Description：DC BLOCK TYPE N 380MHZ-2.7GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：-
- Frequency：-
- RF Type：-
- Secondary Attributes：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview
The SD3071 is an RF IC component manufactured by Fairview Microwave, classified under RF Miscellaneous ICs and Modules. It functions as a DC block designed for radio frequency applications. The device operates within a frequency range of 380 MHz to 2.7 GHz. This specification defines the operational bandwidth for signal transmission while blocking direct current components.
Feature Summary
- Provides DC blocking functionality for RF signal paths
- Operates within the 380 MHz to 2.7 GHz frequency spectrum
Applications
- RF circuit design requiring DC isolation
- Laboratory test and measurement setups
- Defense and military communication systems
Procurement Notes
Verify the specific datasheet documentation from Fairview Microwave or authorized distributors to confirm pinout configurations and electrical tolerances. Ensure compatibility with system impedance requirements before integration. Check for any specific handling instructions related to moisture sensitivity level 1 classification during storage and assembly processes.
Selection Notes
Select this component when DC isolation is required within the specified UHF and lower VHF bands. Consider the physical package type and mounting style relative to the PCB layout. Evaluate insertion loss and return loss characteristics against system performance thresholds to ensure signal integrity is maintained across the operating frequency range.
Part Context
Fairview Microwave specializes in high-quality RF, microwave, and millimeter-wave components. The SD3071 falls within their portfolio of passive RF devices intended for robust performance in demanding environments. These components support various industries including aerospace, defense, and industrial testing where reliable signal processing is critical.
Replacement Considerations
Consult official Fairview Microwave documentation for verified substitute part numbers. Cross-reference specifications such as frequency range and DC blocking capability to ensure functional equivalence. Generic replacements may not meet the specific performance standards required for sensitive RF applications.
