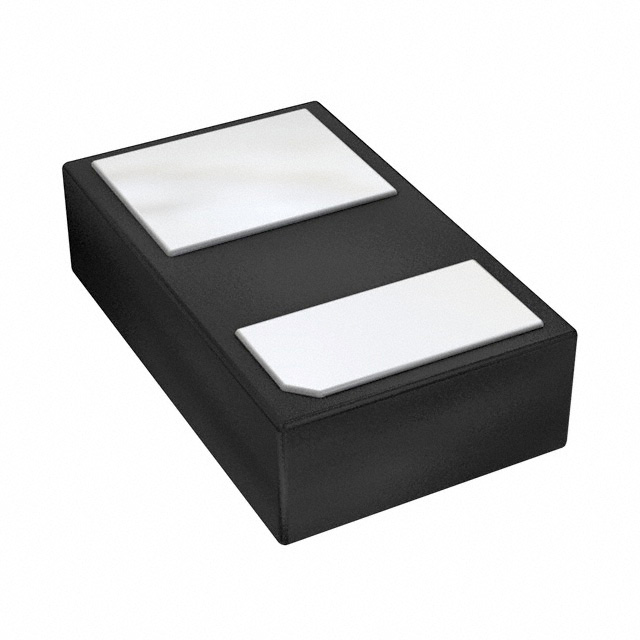

SDM2U30CSP-7 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE SCHOTTKY 30V 2A X3WLB16082. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SDM2U30CSP-7
- Description：DIODE SCHOTTKY 30V 2A X3WLB16082
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io)：2A
- Voltage - Forward (Vf) (Max) @ If：480 mV @ 2 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：150 µA @ 30 V
- Capacitance @ Vr, F：110pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：2-XDFN
- Supplier Device Package：X3-WLB1608-2
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SDM2U30CSP-7
Single Diodes Overview
The SDM2U30CSP-7 is a 30V, 2A Schottky barrier rectifier in an X3-WLB1608-2 chip-scale package. It features a maximum forward voltage of 0.48V at 2.0A and a reverse current of 150µA at 30V. The device supports a non-repetitive surge current of 28A and operates between -55°C and +150°C.
Single Diodes Feature Summary
- Low forward voltage minimizes conduction losses and improves efficiency.
- Reduced high-temperature reverse leakage increases reliability against thermal runaway.
- Compact chip-scale package occupies minimal board space with low profile.
Single Diodes Applications
- Blocking diodes
- Boost diodes
- Switching diodes
- Reverse protection diodes
Single Diodes Procurement Notes
Verify the specific ordering suffix to confirm packing quantity and carrier tape specifications. The SDM2U30CSP-7 variant utilizes a 5,000-unit tape and reel with a 4mm pocket-to-pocket pitch. Confirm compliance requirements such as RoHS and halogen-free status directly from the manufacturer's documentation before procurement.
Single Diodes Selection Notes
Select this component for portable applications requiring high efficiency and reduced board space. Ensure the design accommodates the 155°C/W thermal resistance on FR-4 PCBs. Verify that the 30V rating and 2A average current meet the circuit demands while considering derating factors for capacitive loads.
Single Diodes Part Context
This part belongs to Diodes Incorporated's SDM series of Schottky barrier rectifiers designed for compact surface-mount applications. The CSP technology allows for significant reduction in footprint compared to traditional packages, supporting modern miniaturization trends in consumer electronics and portable devices.
Single Diodes Replacement Considerations
SDM2U30CSP-7B
