SFD25

Overview

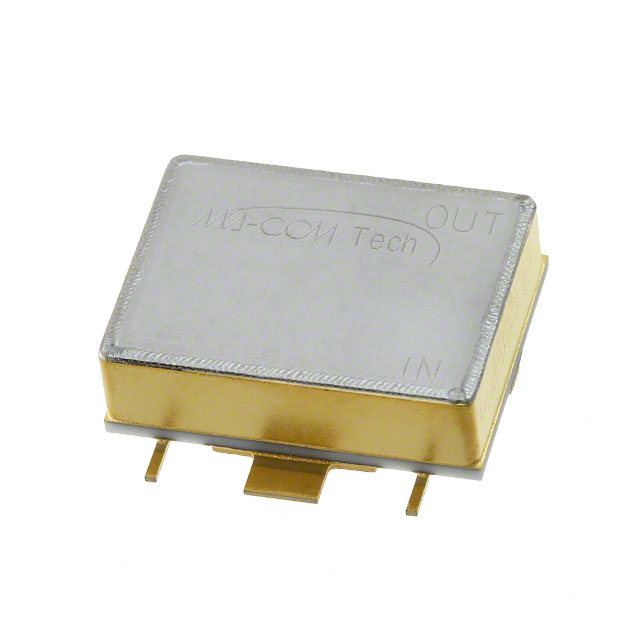

The SFD25 is a surface-mount frequency doubler module manufactured by MACOM Technology Solutions. Designed for general-purpose RF applications, it operates within a frequency range of 5 MHz to 2.4 GHz. The component functions as an RF IC that converts input frequencies to double the output signal. It is classified under RF Misc ICs and modules, providing a compact solution for signal conditioning in various electronic systems requiring frequency multiplication.

Feature Summary

• Functions as a high-performance frequency doubler module for RF/IF applications
• Supports general-purpose use with a wide operational bandwidth from 5 MHz to 2.4 GHz
• Utilizes surface mount technology for integration into modern circuit boards

Applications

• RF and IF system design
• Industrial, Scientific, and Medical (ISM) equipment
• Wireless LAN networks
• Test and instrumentation systems

Procurement Notes

Verify the specific package configuration and lead time requirements prior to ordering, as standard lead times may vary. Confirm that the surface-mount module form factor aligns with the target PCB layout constraints. Ensure the operating frequency range meets the specific application needs between 5 MHz and 2.4 GHz. Check for any specific handling instructions related to RF components during assembly.

Selection Notes

Select the SFD25 when a dedicated frequency doubling function is required within the 5 MHz to 2.4 GHz spectrum. This component is suitable for designs prioritizing surface-mount integration and general-purpose RF signal processing. Consider its module format for ease of implementation compared to discrete solutions. Evaluate compatibility with existing RF infrastructure and ISM band requirements.

Part Context

The SFD25 belongs to MACOM's portfolio of RF misc ICs and modules, specifically targeting frequency conversion tasks. It complements other signal conditioning products like doublers and mixers offered by the manufacturer. The part is categorized under general-purpose RF types, distinguishing it from specialized high-power or narrow-band variants. It supports diverse applications ranging from consumer electronics to industrial machinery.

Replacement Considerations

Public confirmed substitute part numbers include FD93H, FD26, FD93, SMX-C6, and SMX-C9, which are also frequency doublers. Verify electrical specifications and pinout compatibility before substitution.
