Product Detailed Parameters
- Description：TRANS 7NPN DARL 50V 600MA 16CDIP
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- Transistor Type：7 NPN Darlington
- Current - Collector (Ic) (Max)：600mA
- Voltage - Collector Emitter Breakdown (Max)：50V
- Vce Saturation (Max) @ Ib, Ic：1.9V @ 600µA, 500mA
- Current - Collector Cutoff (Max)：-
- DC Current Gain (hFE) (Min) @ Ic, Vce：900 @ 500mA, 2V
- Power - Max：-
- Frequency - Transition：-
- Operating Temperature：150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：-
- Supplier Device Package：16-CDIP
- Grade：-
- Qualification：-
Download product information
Overview

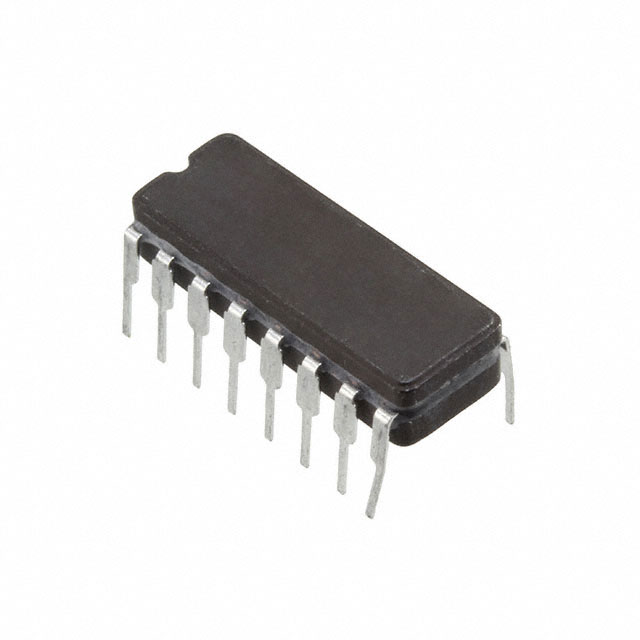

The SG2013J-883B is a hermetically sealed analog circuit manufactured by Microchip Technology, formerly Linfinity. It features a bipolar NPN Darlington transistor array with seven channels housed in a 16-pin ceramic dual in-line package (CDIP). The device supports a maximum collector-emitter voltage of 50V and a continuous collector current of 0.6A. It operates within a military-grade temperature range from -55°C to 125°C. The component utilizes tin/lead through-hole terminals and meets MIL-STD-883 Class B screening requirements.
Feature Summary
- Integrates seven NPN Darlington pairs into a single monolithic structure for compact system design
- Provides high current gain characteristics suitable for driving loads directly
- Features hermetic ceramic packaging to ensure reliability in harsh environments
Applications
- Military aerospace control systems requiring radiation-hardened or high-reliability components
- Industrial automation interfaces demanding robust switching capabilities
- Defense communication equipment utilizing standard peripheral driver architectures
Procurement Notes
Verify the specific suffix designation against official Microchip documentation to confirm compliance with MIL-STD-883 Class B screening standards. Ensure that the procurement source provides traceable lot data consistent with military grade specifications. Confirm that the ceramic dual in-line package integrity remains uncompromised during handling and storage to maintain hermetic seal performance.
Selection Notes
Select this component when a high-density solution for multiple low-power switching applications is required within constrained space. Consider the 50V voltage rating and 0.6A current limit to ensure adequate headroom for load requirements. Evaluate the thermal management needs associated with the CDIP package geometry and the specified operating temperature range for the target environment.
Part Context
This part belongs to the SG20xx series of linear integrated circuits originally developed by Linfinity Microelectronics before its acquisition by Microchip Technology. The series is characterized by high-performance bipolar processes designed for demanding analog and mixed-signal applications. The SG2013 variant specifically addresses multi-channel switching needs in legacy and modern defense electronics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation.
