SG3225VAN 156.250000M-KJBA6

Oscillators Overview

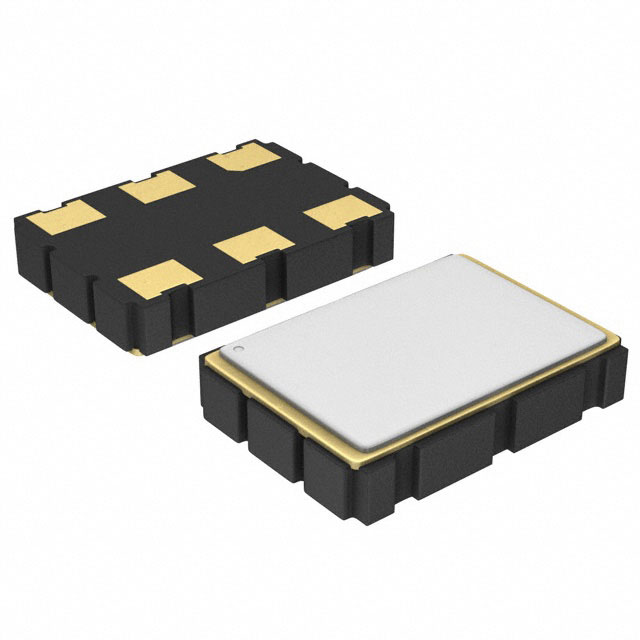

The SG3225VAN 156.250000M-KJBA6 is a standard clock oscillator from Epson's SG3225 series, designed for precise timing applications. It operates at a fixed frequency of 156.25 MHz with an LVDS output format. The device supports a supply voltage range of 2.5 V to 3.3 V and includes an enable/disable control function. It features a frequency stability of ±50 ppm over the operating temperature range of -20°C to +70°C. The component is housed in a compact 6-SMD, no-lead package measuring 3.2 mm x 2.5 mm x 1.05 mm, suitable for surface-mount assembly.

Oscillators Feature Summary

• Utilizes PLL technology and AT-cut crystal resonator for stable oscillation
• Provides LVDS output signal for high-speed digital interfaces
• Includes hardware enable/disable pin for power management control
• Compact 3.2mm x 2.5mm SMD footprint for space-constrained designs

Oscillators Applications

• High-speed serial communication links requiring 156.25 MHz reference
• Network equipment and data center infrastructure timing
• Consumer electronics with LVDS display or interface requirements
• Industrial control systems needing precise clock synchronization

Oscillators Procurement Notes

Verify the complete part number including suffix KJBA6 to ensure correct frequency, output type, and packaging configuration. Confirm RoHS compliance status and lead-free characteristics as specified by the manufacturer. Check for reel packaging specifications if automated placement is required. Ensure compatibility with the target system's voltage levels and thermal environment before integration.

Oscillators Selection Notes

Select this model when a specific 156.25 MHz frequency with LVDS output is mandatory. Consider the ±50 ppm stability requirement against system jitter budgets. Evaluate the 2.5V-3.3V operating range against available power rails. Compare the 3.2x2.5mm package size against PCB real estate constraints. Verify that the enable/disable feature aligns with system power sequencing needs.

Oscillators Part Context

This component belongs to Epson's SG3225 family of standard clock oscillators, which offers various frequencies and output formats within a small form factor. The SG3225 series is engineered for applications demanding low phase noise and high reliability. Variants within the series differ primarily in frequency, output logic, and stability specifications while maintaining consistent physical dimensions.

Oscillators Replacement Considerations

Direct substitutes must match the 156.25 MHz frequency, LVDS output, and 3.2x2.5mm package. Cross-reference with other Epson SG3225 variants only if electrical parameters are identical. Verify pinout compatibility and thermal characteristics before substituting with components from different manufacturers.
