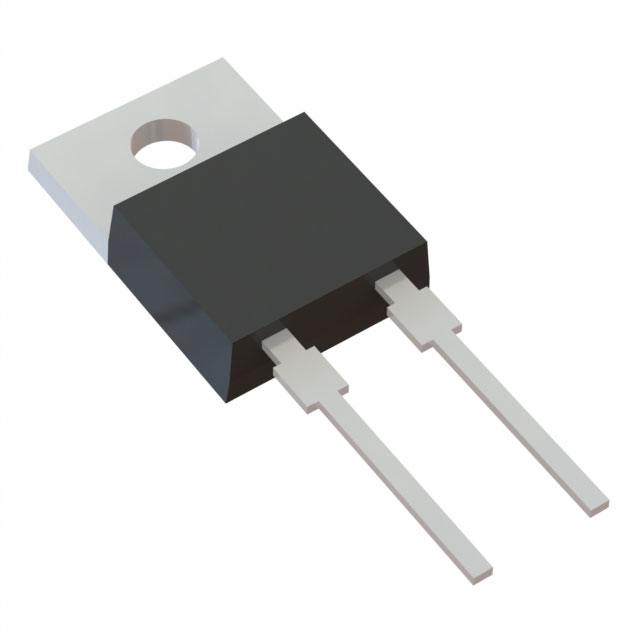

SICRF6650 is listed in the Single Diodes range at ChipApex. The manufacturer field lists SMC Diode Solutions. Its product description is DIODE SIL CARB 650V 6A ITO220AC. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SICRF6650
- Description：DIODE SIL CARB 650V 6A ITO220AC
- Series：-
- Mfr：SMC Diode Solutions
- Package：Tube
- Technology：SiC (Silicon Carbide) Schottky
- Voltage - DC Reverse (Vr) (Max)：650 V
- Current - Average Rectified (Io)：6A
- Voltage - Forward (Vf) (Max) @ If：1.8 V @ 6 A
- Speed：No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr)：0 ns
- Current - Reverse Leakage @ Vr：50 µA @ 650 V
- Capacitance @ Vr, F：150pF @ 5V, 1MHz
- Mounting Type：Through Hole
- Package / Case：TO-220-2 Full Pack, Isolated Tab
- Supplier Device Package：ITO-220AC
- Operating Temperature - Junction：-55°C ~ 175°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SICRF6650
Single Diodes Overview
The SICRF6650 is a Silicon Carbide Schottky diode rectifier manufactured by SMC Diode Solutions. It features a 650 V peak reverse voltage rating and supports a continuous forward current of 6 A. The device exhibits a maximum forward voltage drop of 1.8 V at the rated current. Designed for high-temperature environments, it operates within a junction temperature range of -55°C to 175°C. The component utilizes an ITO-220AC through-hole package with an isolated tab configuration.
Single Diodes Feature Summary
- Utilizes silicon carbide material technology to eliminate reverse recovery time
- Provides high thermal stability suitable for elevated operating temperatures up to 175°C
- Features an isolated tab design for efficient heat dissipation and electrical isolation
Single Diodes Applications
- High-frequency power supply circuits
- Uninterruptible power supply (UPS) systems
- Solar inverter applications
Single Diodes Procurement Notes
Verify the specific package variant, as the ITO-220AC designation may correspond to different lead frame configurations or tab insulation types across manufacturers. Confirm RoHS compliance status and moisture sensitivity level requirements against the specific project specifications before finalizing procurement orders.
Single Diodes Selection Notes
Select this component when zero reverse recovery charge is critical for minimizing switching losses and electromagnetic interference. The wide bandgap material allows for higher efficiency compared to standard silicon alternatives in high-voltage, high-temperature scenarios requiring robust thermal performance.
Single Diodes Part Context
This part belongs to the family of silicon carbide Schottky rectifiers offered by SMC Diode Solutions. These devices are engineered to replace traditional silicon diodes in applications demanding superior thermal conductivity and faster switching speeds, thereby enhancing overall system efficiency and reliability under harsh electrical conditions.
Single Diodes Replacement Considerations
GBU1006
