SIT1602BC-71-28N-40.000000

Oscillators Overview

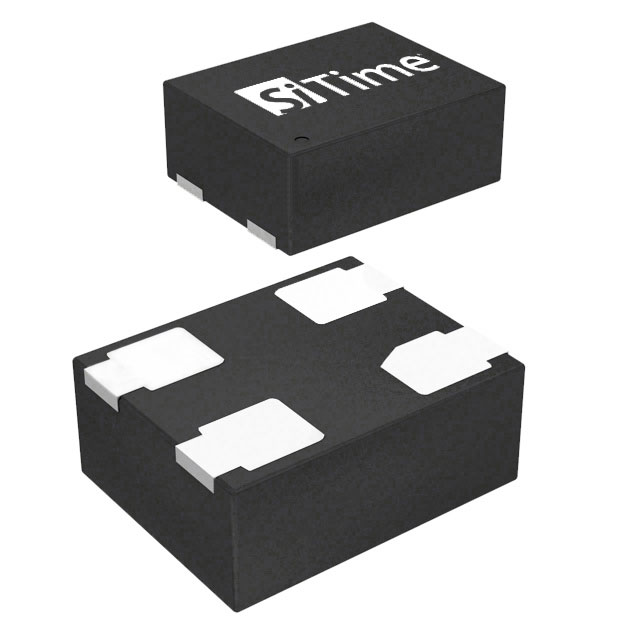

The SiTime SIT1602BC-71-28N-40.000000 is a standard MEMS clock oscillator operating at 40 MHz with LVCMOS/HCMOS output formats. It functions within a 2.7 V to 3.3 V supply range and maintains a frequency stability of 20 ppm across an industrial temperature range of -20°C to +70°C. The device utilizes a 2 mm x 1.6 mm surface-mount package, offering low power consumption and robust timing performance for embedded applications requiring precise clock signals.

Oscillators Feature Summary

• MEMS-based architecture providing enhanced shock and vibration resistance compared to traditional quartz solutions
• Programmable design enabling flexible configuration of frequency and voltage parameters without custom manufacturing delays
• Compact 2016 footprint designed to minimize PCB real estate in space-constrained electronic assemblies

Oscillators Applications

• Embedded systems requiring stable clock sources for microcontrollers and processors
• Industrial control equipment needing reliable timing under varying environmental conditions
• Consumer electronics utilizing low-power oscillators for signal synchronization

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure alignment with required voltage, frequency tolerance, and packaging specifications. Confirm that the requested part number matches the exact operational parameters needed for the target application, as minor variations in suffixes can alter electrical characteristics or physical dimensions.

Oscillators Selection Notes

Select this component when a balance of low power consumption, small form factor, and moderate frequency stability is required. The 2016 package size suits dense layouts, while the MEMS technology offers durability advantages over quartz in high-vibration environments. Ensure the supply voltage range aligns with the system's power rails before integration.

Oscillators Part Context

This model belongs to the SiT1602 series of low-power MEMS oscillators from SiTime. The series is characterized by its programmability, allowing for rapid deployment of custom frequencies. The SIT1602BC variant specifically targets applications demanding reliability and compactness, leveraging silicon MEMS technology to replace discrete quartz crystals in modern electronic designs.

Oscillators Replacement Considerations

Direct cross-replacement requires matching the 40 MHz frequency, LVCMOS output, and 2016 package dimensions. Verify compatibility with existing circuit loading requirements and thermal profiles. Consult official substitution lists from SiTime or authorized distributors for validated equivalent part numbers.
