SIT1602BC-82-25S-8.192000

Oscillators Overview

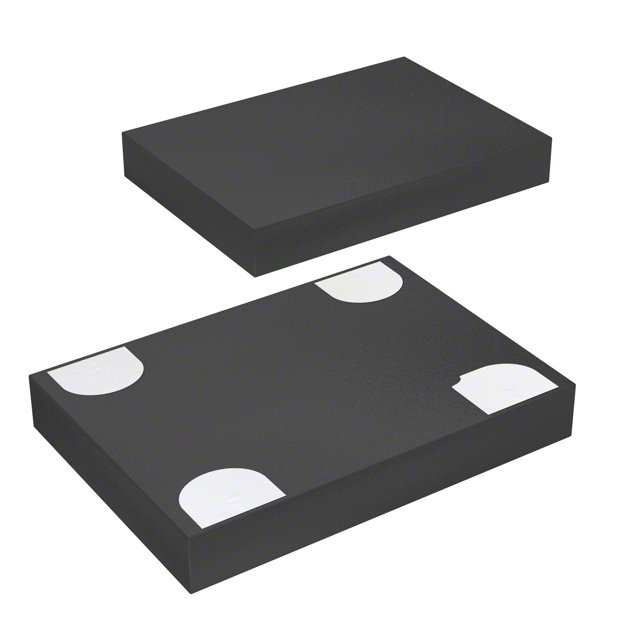

The SiTime SIT1602BC-82-25S-8.192000 is a MEMS-based standard clock oscillator operating at 8.192 MHz with ±25 ppm frequency stability. It supports a supply voltage range of 2.25 V to 3.63 V and features LVCMOS/HCMOS output formats. The device operates within a temperature range of -20°C to +70°C and is housed in a 7.0 x 5.0 mm surface-mount package. Typical current consumption is 3.5 mA at 1.8 V, with a fast startup time of 5 ms.

Oscillators Feature Summary

• Provides excellent total frequency stability as low as ±20 ppm across operating conditions
• Functions as a 100% pin-to-pin drop-in replacement for quartz-based crystal oscillators
• Includes standby mode capability to extend battery life in portable applications

Oscillators Applications

• High-speed serial protocols including USB, SATA, SAS, Firewire, and Ethernet
• Digital Still Cameras (DSC), Digital Video Cameras (DVC), and DVRs
• IP Cameras, Tablets, and e-Books
• Solid State Drives (SSD) and GPON/EPON systems

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to ensure correct voltage, frequency, and package specifications. Confirm RoHS compliance and lead-free status through certified datasheets or component test reports prior to integration into production designs.

Oscillators Selection Notes

Select this model when a direct quartz replacement is required with improved shock resistance and lower power consumption. Ensure the application environment stays within the -20°C to +70°C operational range. Verify that the 7.0 x 5.0 mm footprint fits the PCB layout constraints and that the LVCMOS/HCMOS output levels match the receiving logic interface requirements.

Oscillators Part Context

This component belongs to the SiT1602B family of low-power MEMS oscillators. The family offers 52 standard frequencies between 3.57 MHz and 77.76 MHz. It is designed for general-purpose timing applications where size, power, and stability are critical factors compared to traditional discrete crystal solutions.

Oscillators Replacement Considerations

SiT1602BC-82-25N-8.192000

Oscillators FAQ

What is the typical startup time for this oscillator?

The typical startup time is 5 ms.

Does this part support a standby mode?

Yes, the device includes a standby mode feature designed to reduce power consumption and extend battery life.
