SJPW-F6V

Single Diodes Overview

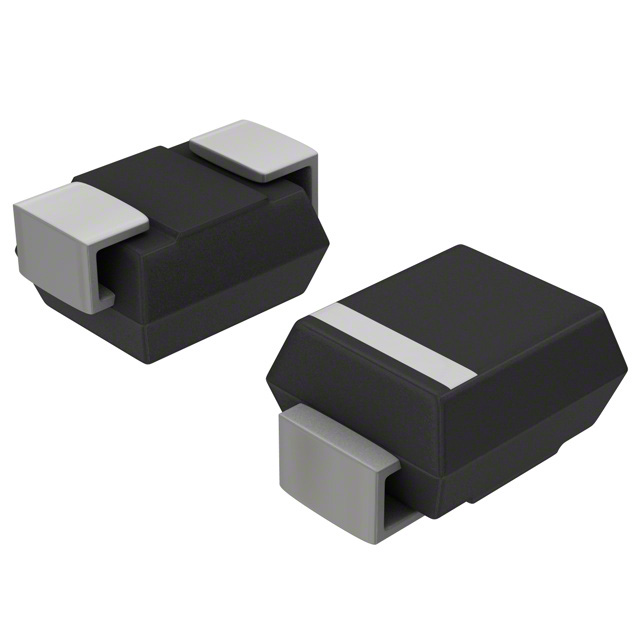

The SJPW-F6 is a 60 V, 1.5 A Schottky diode designed for high-frequency systems and power supply efficiency improvements. It features a typical forward voltage of 0.59 V at 1.5 A and a maximum reverse leakage current of 1 mA at 25 °C. The device supports a junction temperature range of -40 to 150 °C with a thermal resistance (junction-to-lead) of 20 °C/W. It utilizes a bare lead frame compliant with RoHS standards and meets UL94V-0 flammability requirements.

Single Diodes Feature Summary

• Optimized forward voltage and reverse leakage characteristics for enhanced power supply efficiency
• Bare lead frame construction that is Pb-free and RoHS compliant
• High reliability design suitable for automotive requirements
• Flammability rating equivalent to UL94V-0

Single Diodes Applications

• DC-DC Converters
• Adapters
• High speed switching applications

Single Diodes Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct package and marking configurations. Confirm compliance with EU RoHS Directive and local environmental regulations prior to integration. Review the latest datasheet revision for any updates to absolute maximum ratings or thermal derating curves before finalizing procurement specifications.

Single Diodes Selection Notes

Select this component for circuits requiring low forward voltage drop at 1.5 A average forward current. Ensure the operating junction temperature remains within the -40 to 150 °C range. Consider the 20 °C/W thermal resistance when designing heat dissipation paths, as the thermal metric is defined between junction and lead rather than ambient.

Single Diodes Part Context

This Schottky diode belongs to Sanken Electric's SJP series, which focuses on improving VF and IR characteristics for high-frequency operation. The SJPW-F6 specifically targets applications demanding improved power supply efficiency through reduced conduction losses and minimal reverse leakage currents.

Single Diodes Replacement Considerations

No public substitute part numbers are documented in the source material. Verify compatibility with existing circuit parameters if considering alternative components from other manufacturers.

Single Diodes FAQ

What is the thermal resistance definition for this component?

The thermal resistance Rth(J-L) is 20 °C/W, representing the resistance between the junction and the lead. Lead temperature measurement is specified near the root of the pin.

What is the maximum reverse leakage current at elevated temperatures?

At a junction temperature of 150 °C and rated reverse voltage, the maximum reverse leakage current under high temperature conditions is 70 mA.
