SK2060CD2R

$0.39

Description：DIODE ARR SCHOTT 60V 10A TO263AB
Series：-

SKU:2f266758afd2 Category: Diode Arrays Brand: Diotec Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SK2060CD2R is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Diotec Semiconductor. Its product description is DIODE ARR SCHOTT 60V 10A TO263AB. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for SK2060CD2R

Description：DIODE ARR SCHOTT 60V 10A TO263AB
Series：-
Mfr：Diotec Semiconductor
Package：Bulk
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：60 V
Current - Average Rectified (Io) (per Diode)：10A
Voltage - Forward (Vf) (Max) @ If：700 mV @ 10 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：300 µA @ 60 V
Operating Temperature - Junction：-50°C ~ 150°C
Mounting Type：Surface Mount
Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device Package：TO-263AB (D2PAK)
Grade：-
Qualification：-

Diode Arrays datasheet and documents for SK2060CD2R

SK2060CD2R

Diode Arrays Overview

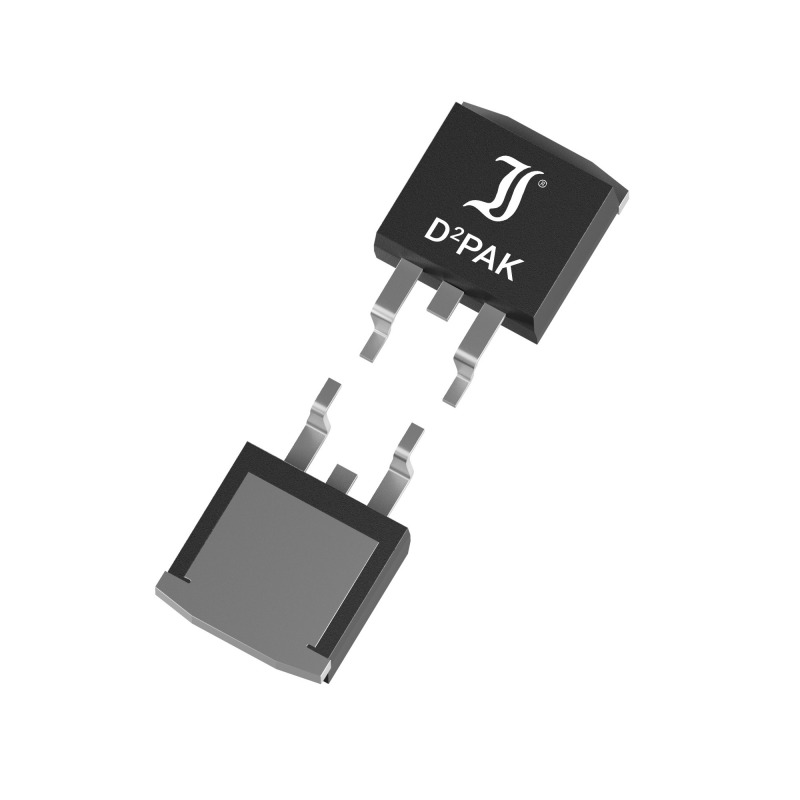

The SK2060CD2R is a surface-mount Schottky barrier rectifier diode manufactured by Diotec Semiconductor. It features a dual common cathode configuration within a D²PAK (TO-263AB) package. The device supports a repetitive peak reverse voltage of 60 V and provides a maximum average forward rectified current of 10 A per diode, or 20 A in parallel operation at a case temperature of 100°C. It exhibits a low forward voltage drop ranging from less than 0.63 V to 0.70 V depending on the test conditions. The component operates with a junction temperature range of -50°C to +150°C and includes a thermal resistance from junction to case of less than 1.5 K/W.

Diode Arrays Feature Summary

Low forward voltage drop for improved efficiency
Common cathode configuration for dual-diode applications
High surge current capability
Compliant with RoHS and REACH regulations

Diode Arrays Applications

Polarity protection circuits
Free-wheeling diodes
Output rectification in DC/DC converters

Diode Arrays Procurement Notes

Verify the specific ordering suffix against official documentation to confirm packaging details. The 'R' suffix indicates availability on a 13-inch reel upon request. Confirm compliance requirements such as AEC-Q101 status if automotive grade is needed, as standard versions differ from qualified variants. Ensure the requested part matches the exact electrical ratings required for the target application design.

Diode Arrays Selection Notes

Select this component for designs requiring a dual Schottky rectifier in a high-current surface-mount footprint. The D²PAK package offers robust thermal performance suitable for industrial environments. Consider the 60 V rating when designing for systems with potential voltage spikes. Verify that the 10 A per diode rating aligns with the continuous load requirements of the circuit under expected operating temperatures.

Diode Arrays Part Context

This part belongs to the SK20xxCD2 series of SMD Schottky Barrier Rectifiers from Diotec Semiconductor. The series covers various voltage ratings from 45 V to 100 V while maintaining consistent current handling capabilities. The SK2060CD2R specifically addresses applications needing 60 V blocking voltage with a dual-diode setup in a standardized TO-263AB housing.
