SK24-LTP

Single Diodes Overview

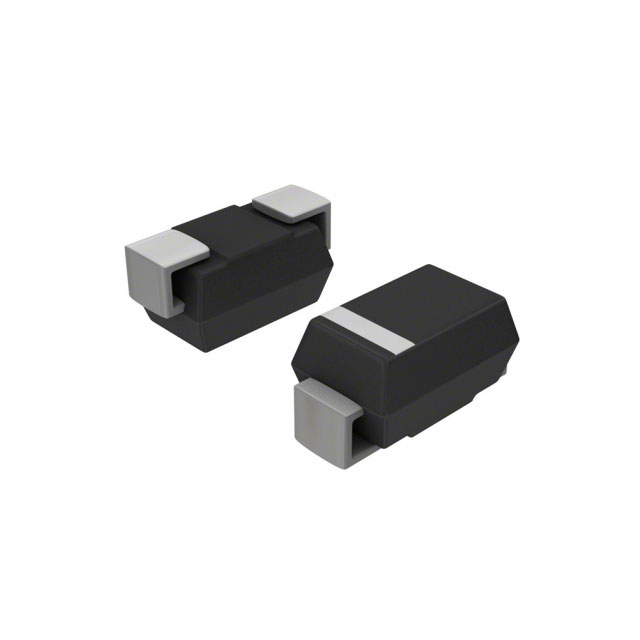

The SK24-LTP is a single Schottky barrier rectifier manufactured by Micro Commercial Components (MCC). It features a silicon construction housed in the DO-214AA (SMB) surface-mount package. The device supports a maximum average forward rectified current of 2 A and a repetitive peak reverse voltage of 40 V. Key electrical parameters include a maximum forward voltage of 500 mV, a non-repetitive peak forward surge current of 50 A, and a maximum reverse current of 2 mA. It operates within a temperature range of -55°C to +125°C.

Single Diodes Feature Summary

• Utilizes Schottky barrier technology for low forward voltage drop and high switching efficiency.
• Designed for surface-mount assembly using the standard DO-214AA (SMB) footprint.
• Constructed with silicon material to ensure stable performance across wide temperature ranges.

Single Diodes Applications

• General-purpose rectification in power supply circuits
• Free-wheeling diode applications in inductive load protection
• DC-DC converter output rectification

Single Diodes Procurement Notes

Verify the component status before procurement as it may be classified as Not Recommended for New Designs (NRND). Confirm that the DO-214AA package dimensions match your PCB layout requirements. Ensure the 40 V reverse voltage rating meets your circuit's peak inverse voltage demands. Check for RoHS compliance documentation if environmental regulations apply to your manufacturing process.

Single Diodes Selection Notes

Select this component when a 2 A current capacity and 40 V blocking voltage are required in a compact surface-mount form factor. Compare the 500 mV forward voltage against alternatives if lower conduction loss is critical. Consider the 50 A surge capability for circuits with high inrush currents. Verify thermal management needs given the 125°C maximum junction temperature limit.

Single Diodes Part Context

The SK24-LTP belongs to the SK24 series of Schottky rectifiers from Micro Commercial Components. This series typically includes variants with different voltage ratings but similar current handling capabilities. The part is distinct from higher-current SMC packages like the SK43L or lower-voltage SMB variants like the SK14. It serves as a standard solution for medium-power surface-mount rectification tasks.

Single Diodes Replacement Considerations

Direct substitutes include other manufacturers' parts meeting the 2A/40V/DO-214AA specification. Variants such as SK24-LT or SK24E from Good-Ark share identical electrical ratings and package dimensions. Cross-reference pinouts and thermal characteristics before substitution.
