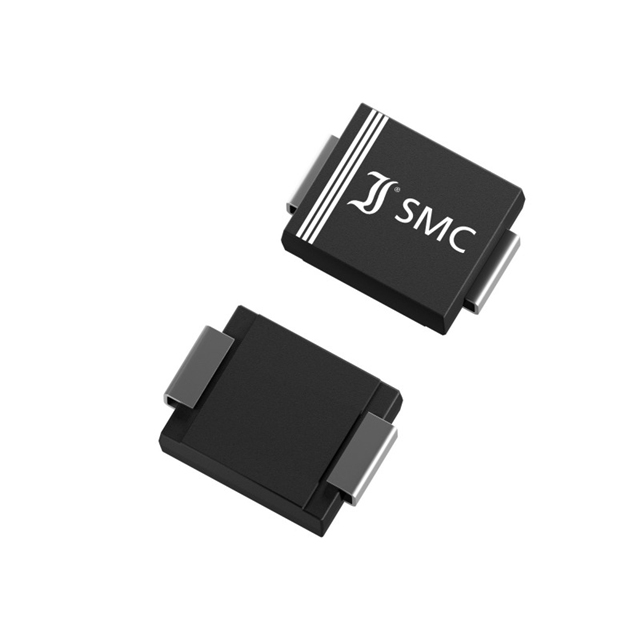

SK34-AQ is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diotec Semiconductor. Its product description is DIODE SCHOTTKY 40V 3A DO214AB. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SK34-AQ
- Description：DIODE SCHOTTKY 40V 3A DO214AB
- Series：-
- Mfr：Diotec Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 40 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：DO-214AB, SMC
- Supplier Device Package：DO-214AB (SMC)
- Operating Temperature - Junction：-50°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SK34-AQ
Single Diodes Overview
The SK34-AQ is an automotive-grade Schottky rectifier manufactured by Diotec Semiconductor. It features a single diode configuration in a SOD-123FL surface-mount package. Key electrical parameters include a maximum repetitive reverse voltage (Vrrm) of 40 V and an average forward current (If) of 3 A. The device exhibits a typical forward voltage (Vf) of 500 mV at the rated current, with a maximum non-repetitive peak forward surge current (Ifsm) of 45 A. Reverse leakage current (Ir) is specified at 200 uA. The component is qualified to AEC-Q101 standards for automotive applications.
Single Diodes Feature Summary
- Automotive qualification compliant with AEC-Q101 standards
- Low forward voltage drop for improved energy efficiency
- High surge current capability for robust transient protection
Single Diodes Applications
- Automotive power supply circuits
- Reverse polarity protection systems
- DC-DC converter output rectification
Single Diodes Procurement Notes
Verify the specific suffix and marking code against the official Diotec Semiconductor datasheet to confirm the exact variant. Ensure the ordering information matches the required packaging format and tape-and-reel specifications. Confirm that the component meets the specific temperature range and reliability requirements for the intended automotive application environment before finalizing procurement.
Single Diodes Selection Notes
Select this component when a compact SOD-123FL footprint is required for high-current automotive applications. The 40 V rating suits low-voltage DC bus systems. Compare thermal resistance characteristics against alternative packages if heat dissipation is critical. Verify compatibility with automated assembly processes given the small outline dimensions.
Single Diodes Part Context
This part belongs to Diotec's automotive-grade Schottky diode portfolio, designed for reliability in harsh environments. The 'AQ' suffix typically denotes AEC-Q101 qualification. It complements other series like the SMB and SMC packages for higher power handling needs within the same manufacturer lineup.
Single Diodes Replacement Considerations
Check for direct cross-reference part numbers from Diotec or other manufacturers offering identical 40V/3A SOD-123FL Schottky specifications. Ensure pinout compatibility and thermal performance match the original design requirements.
Explore related parts through Rectifiers, Diodes, Discrete Semiconductor Products, all product categories.
