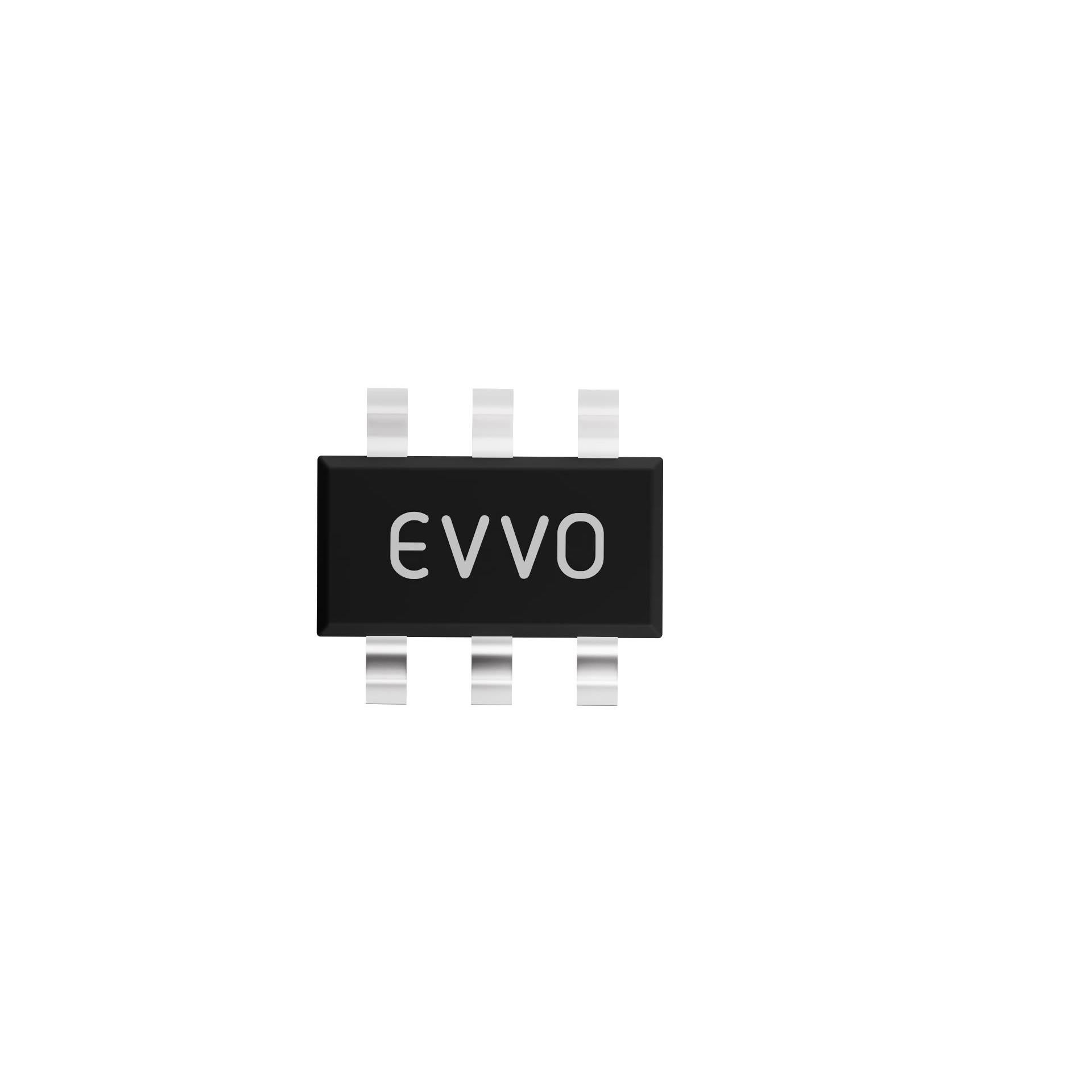

SN74LVC2G14DBVR-EV

Inverter Gates Overview

The SN74LVC2G14DBVR-EV is a dual inverter with Schmitt-trigger inputs operating from a 1.65 V to 5.5 V supply. It transforms slowly changing input signals into sharply defined, jitter-free output signals and provides greater noise margins than conventional inverters. The device features over-voltage tolerant inputs and outputs, balanced 24 mA sink and source capability, near-zero static supply current, and LVTTL/LVCMOS compatibility.

Inverter Gates Feature Summary

• Schmitt-trigger inputs provide hysteresis for receiving slow input signals
• Over-voltage tolerant inputs and outputs support mixed voltage systems
• Balanced 24 mA output drive capability ensures strong signal transmission
• Near-zero static supply current substantially reduces system power requirements

Inverter Gates Applications

• Line receiver applications for slow input signals
• Waveform shaping and pulse generation
• Oscillator circuits utilizing the hysteresis function
• Interface between 5 V TTL logic and lower voltage CMOS devices

Inverter Gates Procurement Notes

Verify that the EVVO manufacturer designation matches your specific supply chain requirements. Confirm the SOT-23-6 package type aligns with your PCB footprint. Ensure the RoHS compliance status meets your environmental regulations. Validate the operating temperature range against your system's thermal constraints before finalizing procurement.

Inverter Gates Selection Notes

Select this component when slow-rising input signals require clean, jitter-free inversion. Choose it for designs needing high noise immunity through Schmitt-trigger action. Opt for this part where low quiescent current is critical for battery-operated systems. Consider its over-voltage tolerance if interfacing directly with 5 V logic levels without additional level shifting.

Inverter Gates Part Context

This device belongs to the SN74LVC2G series of high-performance dual logic gates. It shares pin configuration and functionality with the SN74LVC2G04 but incorporates Schmitt-trigger inputs for enhanced noise rejection. The LVC family is designed for low-voltage operation while maintaining compatibility with standard logic families across various industrial and consumer applications.

Inverter Gates Replacement Considerations

SN74LVC2G14DCKR

Inverter Gates FAQ

How does the Schmitt-trigger function benefit signal processing?

It provides hysteresis between positive-going and negative-going thresholds, transforming slowly changing input signals into sharply defined, jitter-free output signals.

What is the maximum input voltage supported by this device?

The device features over-voltage tolerant inputs capable of accepting voltages up to 5.5 V, even when operating at lower supply voltages like 3 V.

Does this inverter consume significant static power?

No, the device exhibits near-zero static supply current, which substantially reduces overall system power requirements during idle states.
