SP5748GGK0AVMJ6R

Microcontrollers Overview

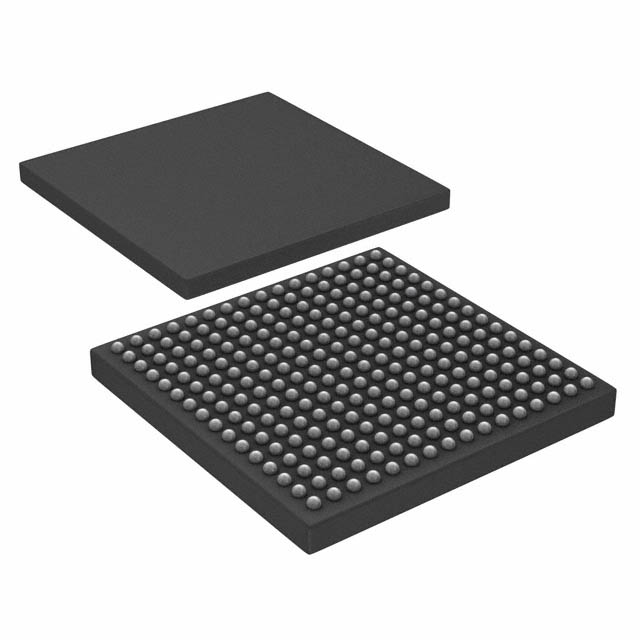

The SP5748GGK0AVMJ6R is a 32-bit microcontroller from the NXP MPC574xG series, designed for automotive applications. It features e200z2 and e200z4 cores with 6 MB of Flash program memory and 768 kB of data RAM. The device supports clock frequencies up to 160 MHz and operates within a voltage range of 1.2 V to 1.32 V. It includes ADCs with 10-bit and 12-bit resolutions, offering 16 or 48 channels depending on configuration. Interfaces include CAN, LIN, I2C, SPI, and USB. The component is housed in an LBGA-256 package, meets AEC-Q100 qualification standards, and functions between -40°C and +105°C.

Microcontrollers Feature Summary

• Integrates dual-core architecture utilizing e200z2 and e200z4 processors for complex control tasks.
• Provides extensive connectivity through multiple communication interfaces including CAN, LIN, I2C, SPI, and USB.
• Incorporates high-resolution analog-to-digital conversion capabilities with selectable 10-bit and 12-bit modes.
• Meets automotive reliability requirements with AEC-Q100 certification and extended temperature operation.

Microcontrollers Applications

• Automotive body control modules requiring robust multi-core processing
• Gateway systems utilizing diverse serial communication protocols
• Sensor interface units needing high-speed analog signal acquisition

Microcontrollers Procurement Notes

Verify the specific suffix codes against official NXP documentation to confirm exact memory configurations and package variants. Ensure compatibility with existing board layouts for the LBGA-256 footprint. Confirm that the selected revision aligns with required automotive qualification standards and operating temperature ranges before finalizing procurement orders.

Microcontrollers Selection Notes

Select this component when a dual-core solution with substantial non-volatile memory is required for automotive environments. Consider the LBGA-256 package constraints during PCB design. Evaluate the need for specific interface combinations such as FlexRay or ISO CAN FD, which may vary across the MPC574xG family, to ensure this specific part number matches the system's communication topology.

Microcontrollers Part Context

This microcontroller belongs to the MPC574xG family, targeting advanced automotive electronic control units. It shares architectural similarities with other members like SPC5748GBK0AVMJ6 but differs in core configuration and package type. The series emphasizes safety and performance for powertrain and chassis applications.

Microcontrollers Replacement Considerations

SPC5748GBK0AVMJ6 offers similar memory capacity but utilizes a MAPBGA-256 package and triple-core architecture. Verify pinout compatibility and software migration efforts when considering substitutes within the MPC574xG series.

Microcontrollers FAQ

What processor cores are integrated into the SP5748GGK0AVMJ6R?

The device integrates e200z2 and e200z4 cores.

Does this microcontroller support automotive qualification standards?

Yes, it is qualified according to AEC-Q100 standards.

What is the maximum operating temperature for this component?

The maximum operating temperature is +105°C.
