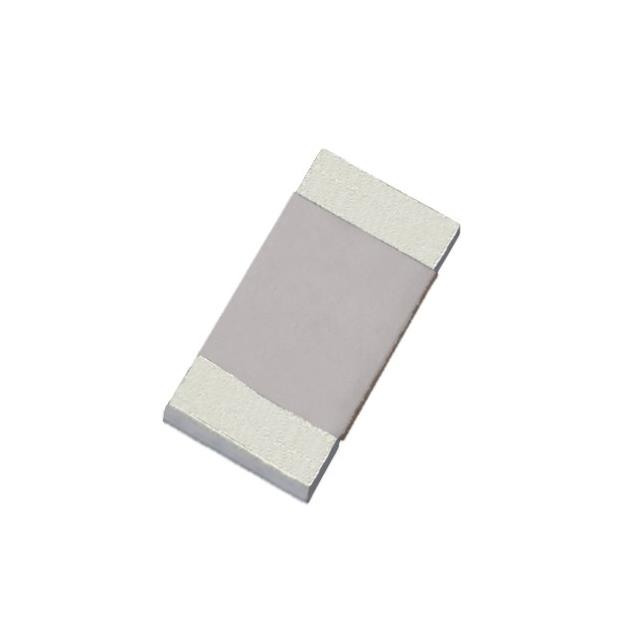

SRCG091 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenova. Its product description is ADMOTUS CERAMIC ANTENNA GNSS L1. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SRCG091
- Description：ADMOTUS CERAMIC ANTENNA GNSS L1
- Series：ceriiANT®
- Mfr：Antenova
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.584GHz
- Frequency Range：1.559GHz ~ 1.61GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：1.8
- Return Loss：-11.5dB
- Gain：0.9dBi
- Features：-
- Termination：SMA Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.020" (0.50mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
- Power - Max：-
Antennas RF datasheet and documents for SRCG091
