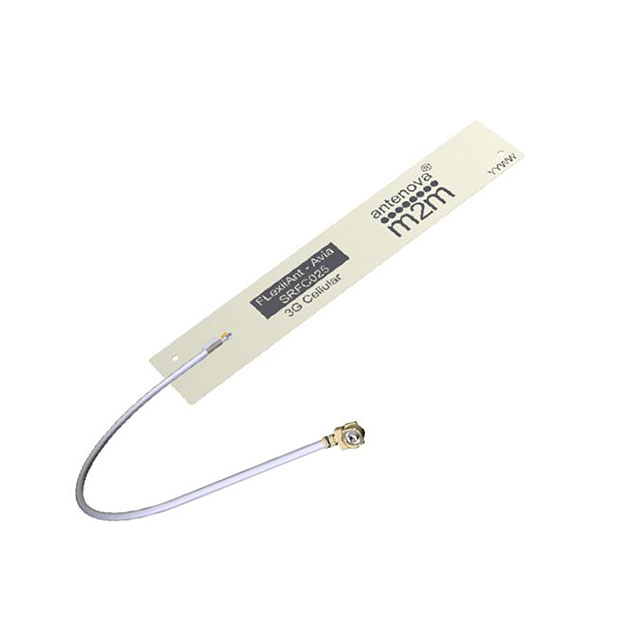

SRFC025-100 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenova. Its product description is RF ANT 892MHZ/1.9GHZ FLAT 100MM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SRFC025-100
- Description：RF ANT 892MHZ/1.9GHZ FLAT 100MM
- Series：-
- Mfr：Antenova
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：892MHz, 1.9GHz
- Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type：Flat Patch
- Number of Bands：2
- VSWR：2.2
- Return Loss：-17dB
- Gain：5.4dBi
- Features：-
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.006" (0.15mm)
- Applications：GSM, WCDMA
- Power - Max：-
Antennas RF datasheet and documents for SRFC025-100
